Muda Mura Muri: The Toyota 3M Model Complete Guide

Muda, Mura, and Muri are the three types of waste in the Toyota 3M model, representing waste, unevenness, and overburden that manufacturing operations must address together because Mura (unevenness in demand or workload) creates Muri (overburden on people or equipment), which in turn generates Muda (the eight wastes of non-value-adding activities). Developed by Toyota as part of the Toyota Production System in the mid-20th century, the 3M framework recognizes that eliminating visible waste (Muda) without addressing its root causes in unevenness (Mura) and overburden (Muri) produces only temporary improvement, as the systemic conditions that created the waste remain intact and quickly regenerate it.

Most lean implementations focus exclusively on Muda (the eight wastes categorized by the DOWNTIME acronym) because waste is visible, measurable, and satisfying to eliminate. However, organizations that achieve only Muda reduction without addressing Mura and Muri discover that waste returns continuously, requiring constant firefighting rather than sustainable improvement. The Toyota 3M model provides the complete framework for understanding why waste exists, not just what waste looks like, making it possible to address operational problems at their source rather than treating symptoms indefinitely.

Key Insight: The Toyota 3M model addresses waste at three levels: Muda (the visible waste), Mura (the unevenness that creates waste), and Muri (the overburden that accelerates waste generation). Organizations that eliminate only Muda without addressing Mura and Muri achieve temporary results because the root causes remain.

The Three Ms Explained: Muda, Mura, and Muri

Each type of waste in the Toyota 3M model has distinct characteristics, causes, and manifestations that make it identifiable in operations. Understanding what each M looks like in practice enables systematic diagnosis of which type dominates current operations.

Muda: Waste (Non-Value-Adding Activities)

Muda represents any activity that consumes resources (time, materials, labor, equipment, or space) without adding value from the customer's perspective. The customer defines value as the transformation of materials or information into a product or service they are willing to pay for. Everything else is waste.

The eight types of Muda, remembered by the DOWNTIME acronym, categorize the specific forms waste takes:

Defects: Products failing quality specifications requiring rework or scrap Common causes:

Process drift from target parameters
Inadequate operator training
Worn tooling or equipment
Material variation exceeding process capability

Overproduction: Making more than customers ordered or producing earlier than needed Common causes:

Large batch sizes driven by long changeover times
Producing to forecast rather than actual orders
Equipment utilization metrics rewarding overproduction
Lack of downstream consumption visibility

Waiting: Idle time when operators, equipment, or materials are not productive Common causes:

Unbalanced line with mismatched cycle times
Equipment breakdowns stopping downstream processes
Material shortages delaying production starts
Approval or decision delays holding work

Non-utilized Talent: Failing to engage employee skills, creativity, or problem-solving capability Common causes:

Hierarchical cultures where only managers solve problems
No structured suggestion or kaizen systems
Workers assigned to tasks far below skill level
Fear of speaking up or challenging methods

Transportation: Unnecessary movement of materials, components, or information Common causes:

Poor facility layout creating long travel distances
Centralized storage requiring retrieval trips
Batch processing necessitating movement between operations
Multiple handling events through staging areas

Inventory: Excess raw materials, work-in-process, or finished goods beyond immediate need Common causes:

Large batch production creating buffer stock
Long supplier lead times requiring safety stock
Overproduction pushing units into storage
Poor demand forecasting creating mismatch

Motion: Unnecessary operator movement within workstations Common causes:

Poor workstation layout requiring excessive reach
Tools and materials not stored at point of use
Lack of 5S organization creating search time
Equipment controls positioned inconveniently

Excess Processing: Work performed beyond customer requirements Common causes:

Unclear customer specifications leading to gold-plating
Legacy processes designed for tighter tolerances than needed
Redundant inspection or approval steps
Use of higher-grade materials than specified

For complete details on identifying and eliminating each waste type, see The 8 Wastes of Lean Manufacturing: DOWNTIME Explained.

Mura: Unevenness (Variation in Demand or Workload)

Mura represents irregularity, inconsistency, or unevenness in processes, schedules, or resource utilization. Unlike Muda, which is waste you can see and measure, Mura is the pattern of variation that creates conditions where waste becomes inevitable.

Production schedule unevenness:

Large batch production creating peaks when batches run and valleys between batches
Month-end or quarter-end surge shipping to meet targets
Promotional periods driving demand spikes followed by dramatic drops
Uneven order patterns from customers creating feast-or-famine cycles

Workload distribution unevenness:

Some operators overloaded while others underutilized
Certain shifts experiencing higher volume than others
Specific products consuming disproportionate resources relative to others
Equipment utilization varying wildly day to day

Process variation:

Cycle times varying significantly for same operation
Quality varying between shifts, operators, or time of day
Setup times differing dramatically between changeovers
Material consumption rates fluctuating unpredictably

Mura is often invisible in aggregate metrics. Average utilization might appear acceptable even when underlying variation creates periods of extreme overburden alternating with periods of idleness. The problem is not the average but the variation around it.

Muri: Overburden (Excessive Strain on People or Equipment)

Muri describes conditions where people, equipment, or processes are pushed beyond reasonable, sustainable capacity. Unlike Muda, which wastes resources on non-value-adding work, Muri damages resources by demanding more than they can safely or effectively provide.

People overburden:

Operators working at physically unsustainable pace
Workers assigned tasks requiring excessive strength or repetitive strain
Cognitive overload from complex decisions under time pressure
Emotional stress from unrealistic expectations or constant firefighting
Inadequate training forcing workers to figure out tasks independently

Equipment overburden:

Machines running at speeds exceeding design parameters
Equipment operating without adequate maintenance intervals
Tools used beyond intended service life
Processes run outside specification windows to compensate for capacity shortfalls
Lack of preventive maintenance forcing emergency repairs

System overburden:

Production schedules requiring 100% uptime with no contingency
Quality systems depending on perfect execution without error-proofing
Information systems requiring manual data re-entry across platforms
Supplier relationships demanding instant response to changes
Management systems expecting simultaneous contradictory objectives

Muri manifests through degradation over time. Equipment reliability declines, defect rates increase, absenteeism rises, and improvement initiative engagement drops. The symptoms appear gradually, making Muri difficult to recognize until serious problems emerge.

Key Insight: Muda is the visible waste consuming resources without adding value. Mura is the underlying unevenness creating conditions where waste becomes inevitable. Muri is the overburden that accelerates waste generation through equipment degradation and human error. All three must be addressed together.

The Causal Relationship: Why Mura and Muri Create Muda

The critical insight of the Toyota 3M model is the causal chain connecting the three types of waste. Mura causes Muri, and Muri generates Muda. Understanding this relationship explains why waste elimination efforts fail when they address only the visible waste without investigating the unevenness and overburden that produced it.

How Mura Creates Muri

Mura, or unevenness, refers to fluctuations in production schedules, workload distribution, or customer demand that create peaks and valleys in resource utilization. When production schedules vary significantly from day to day or week to week, resources must be sized for peak demand. During peak periods, people and equipment operate at or beyond capacity (Muri), while during valleys, resources sit idle or work at reduced levels.

This pattern creates several problems simultaneously. Equipment sized for peak capacity operates inefficiently during normal periods. Workers experience alternating periods of extreme pressure and boredom. Batch production creates uneven flow, where large batches move through workstations intermittently rather than continuously, forcing downstream processes to either wait for batches to arrive or work frantically when batches appear.

The connection is direct: uneven demand (Mura) forces operations to handle surges, creating overburden (Muri) during peak periods and waste (Muda) during valleys. Facilities attempting to manage Mura through inventory buffering simply convert one type of Muda (waiting waste) into another (inventory waste) without addressing the root unevenness.

How Muri Generates Muda

Muri, or overburden, occurs when people or equipment are pushed beyond sustainable capacity. When operators work at excessive speed, quality deteriorates, producing defects (Muda). When equipment runs beyond design parameters, breakdowns occur more frequently, creating waiting waste (Muda). When workers are assigned tasks requiring excessive physical strain or cognitive load, errors increase and productivity declines.

Muri generates specific Muda categories:

Defects: Rushed work produces quality errors requiring rework
Equipment downtime: Overburdened machines break down more frequently
Motion waste: Workers compensate for overburden through inefficient movements
Waiting: Downstream processes wait when overburdened upstream operations stop
Overproduction: Facilities overproduce during low-demand periods to prepare for anticipated surges

The causal chain operates continuously: unevenness forces overburden, overburden creates waste, and attempts to eliminate waste without reducing unevenness and overburden produce only temporary improvement before the cycle repeats.

Why Addressing Only Muda Fails

Organizations that focus exclusively on the eight wastes (Muda) without investigating Mura and Muri address symptoms rather than causes. A team that eliminates defects through increased inspection has not prevented the overburden (Muri) that caused operators to make errors. A facility that reduces inventory without smoothing demand variation (Mura) will experience stockouts when demand surges, forcing emergency ordering that creates transportation and waiting waste.

The Toyota 3M model insists that sustainable waste elimination requires working backward through the causal chain: reduce Mura to prevent Muri, prevent Muri to eliminate Muda. Only by addressing all three types of waste together can operations achieve stable, sustainable improvement rather than temporary symptom relief.

Key Insight: Mura (unevenness) creates Muri (overburden), which generates Muda (waste). This causal relationship explains why eliminating visible waste without addressing schedule unevenness and resource overburden produces only temporary results. Sustainable improvement requires working backward through the chain.

How to Identify Muda, Mura, and Muri in Your Operations

Systematic identification requires different diagnostic approaches for each type of waste because they manifest differently and require different observational techniques to detect.

Identifying Muda Through Value Stream Mapping

Value stream mapping makes Muda visible by documenting every process step and categorizing it as value-adding or non-value-adding. The mapping process captures:

Process-level waste:

Activities that do not transform the product (transportation, inspection, storage)
Rework loops indicating defect waste
Queue time between operations indicating waiting waste
Batch sizes revealing inventory and overproduction waste

Time analysis revealing waste magnitude:

Process time (value-adding time) versus lead time (total time)
The gap exposes how much time is consumed by waste
Most processes show value-adding time under 5% of total lead time

Quality data showing defect patterns:

First-pass yield at each step
Rework rates and scrap percentages
Inspection points and quality holds

See Value Stream Mapping: A Complete Guide for Manufacturing for detailed VSM methodology.

Identifying Mura Through Variation Analysis

Mura becomes visible through analyzing patterns over time rather than single-point measurements. The diagnostic approach examines:

Production volume variation:

Daily output plotted over weeks or months
Peaks and valleys indicating uneven schedules
Coefficient of variation in daily production rates
Comparison of maximum to minimum daily output

Workload distribution:

Work content per operator or workstation
Takt time compared to actual cycle time variation
Utilization percentages showing some resources overloaded, others underutilized
Shift-to-shift or day-to-day volume differences

Demand pattern analysis:

Customer order patterns showing clustering or concentration
Product mix variation day to day
Seasonal or promotional impact on demand
Forecast accuracy and variation from plan

The goal is identifying where variation exceeds acceptable limits and creates conditions forcing either overburden or idleness.

Identifying Muri Through Load Analysis and Observation

Muri identification requires comparing actual demands against capacity and observing how people and equipment respond under pressure.

Equipment load analysis:

Operating hours versus available hours
Maintenance downtime patterns indicating overuse
Speed settings compared to design specifications
Mean time between failures trending worse over time

Operator workload assessment:

Time study comparing standard times to actual performance requirements

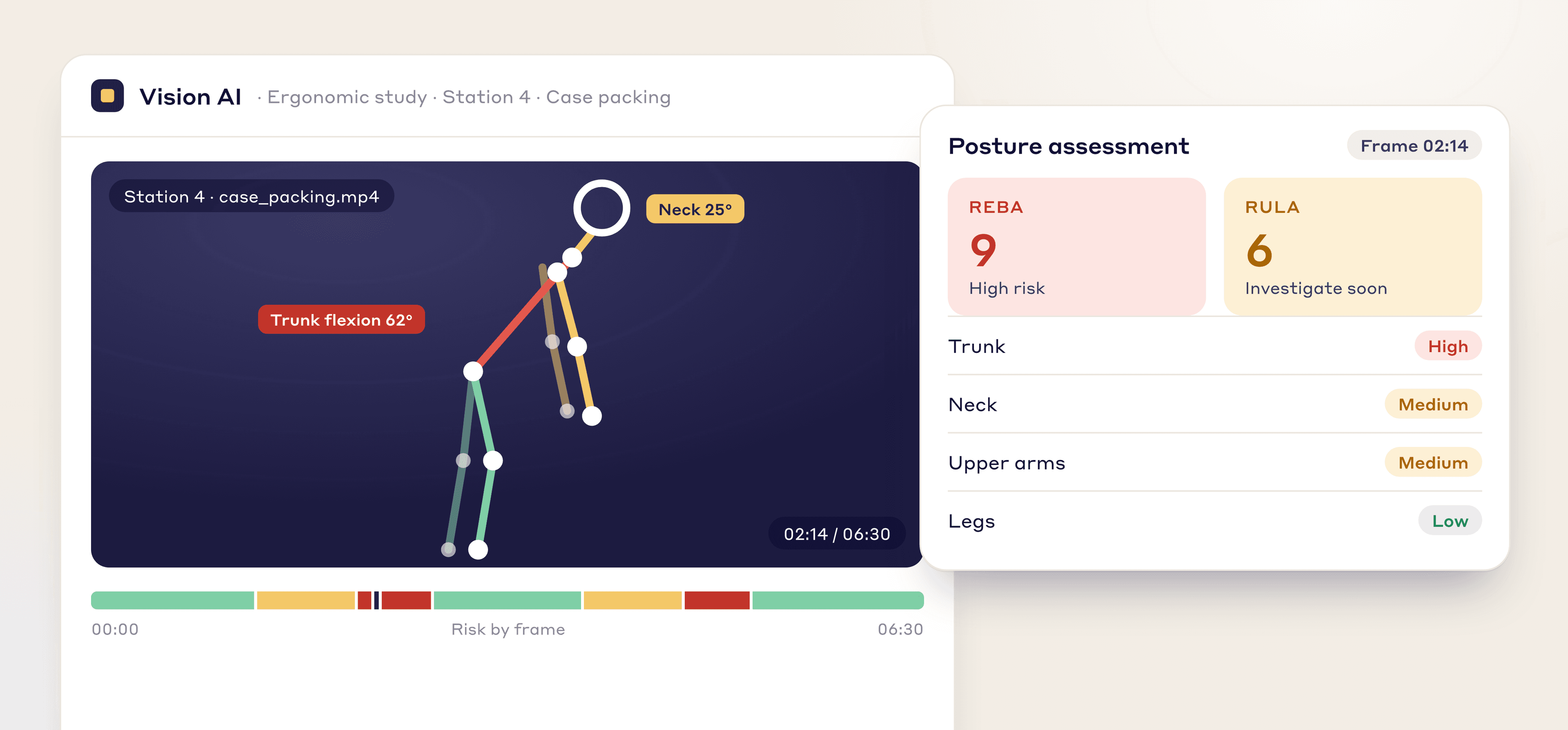

Ergonomic analysis of physical demands
Operator feedback on pace and difficulty
Absenteeism and turnover rates by area

Gemba observation:

Operators rushing, skipping steps, or working unsafely
Equipment showing signs of poor maintenance or condition
Visible stress indicators: clutter, shortcuts, workarounds
Quality problems concentrated during high-volume periods

Questions to ask during Gemba walks:

What prevents you from working at normal pace?
When do you feel most rushed or stressed?
What equipment or tools create the most problems?
Where do you see people or machines being pushed too hard?

Muri often exists where people accept overburden as normal, making direct observation and questioning essential to uncover it.

Key Insight: Muda identification uses value stream mapping to document waste. Mura identification analyzes variation patterns over time. Muri identification compares load against capacity and observes how resources respond under pressure. Each type requires different diagnostic tools.

How to Address Muda, Mura, and Muri Systematically

The Toyota 3M model advocates addressing waste in reverse causal order: reduce Mura first to prevent Muri, then eliminate Muda once the root causes no longer regenerate it. This sequence produces sustainable results rather than temporary symptom relief.

1. Address Mura: Level the Schedule and Workload

Production leveling (Heijunka) reduces variation in schedules and workload, creating stable conditions where overburden becomes unnecessary.

Heijunka strategies:

Mixed-model production producing variety daily rather than in batches
Level daily volume to average demand rather than chasing daily orders
Distribute high-runner and low-runner products throughout schedule
Smooth promotional spikes through inventory prebuild or capacity reservation

Demand smoothing:

Work with customers to reduce order batching
Negotiate level-loaded contracts where possible
Use pricing or lead time to influence demand timing
Build finished goods strategically to buffer variation

Workload balancing:

Line balancing to equalize cycle times across workstations
Cross-training to enable flexible deployment during volume shifts
Standard work ensuring consistent work content across operators
Cell design grouping related operations to contain variation

Production leveling does not eliminate variation entirely. Customer demand will always fluctuate, but it prevents that variation from translating directly into peaks and valleys of resource utilization.

2. Prevent Muri: Design for Sustainable Capacity

Once schedules are leveled, operations can be designed for sustainable capacity rather than forced to accommodate extreme peaks.

Standard work:

Document best-known method for each task
Design work content to fit takt time without rushing
Include quality checks within cycle to prevent defects
Build in ergonomic considerations preventing strain

Equipment maintenance:

TPM programs preventing breakdowns through autonomous and planned maintenance
Schedule maintenance during planned downtime, not as emergency response
Monitor equipment health indicators to detect overuse before failure
Match equipment speed to sustainable operating parameters

Capacity planning:

Right-size equipment and labor for leveled demand
Build buffer capacity for variation rather than running at 100% continuously
Plan flexible capacity (overtime, temporary labor) for true exceptions
Invest in changeover reduction enabling smaller, more frequent batches

See Total Productive Maintenance: A Complete Guide for systematic equipment reliability improvement.

3. Eliminate Muda: Remove Waste Systematically

With Mura reduced and Muri prevented, Muda elimination becomes sustainable because root causes no longer regenerate waste continuously.

Targeted waste elimination:

Defects: Error-proofing and process control preventing problems at source
Overproduction: Pull systems producing only when downstream signals need
Waiting: Line balancing and TPM removing bottlenecks and breakdowns
Transportation: Layout optimization minimizing movement distances
Inventory: Smaller batches and faster changeovers reducing buffer needs
Motion: 5S and ergonomic design eliminating unnecessary movement
Excess processing: Value analysis ensuring only required work performed
Non-utilized talent: Suggestion systems and problem-solving training engaging workforce

The complete methodology for each waste type is detailed in How to Eliminate the 8 Wastes Systematically in Manufacturing.

The Sustaining Mechanism

Addressing the 3Ms in sequence creates a reinforcing cycle. Reduced Mura prevents Muri, which eliminates the conditions generating Muda. With Muda removed, operations flow smoothly, making remaining Mura and Muri more visible and easier to address. The cycle continues as continuous improvement rather than one-time project work.

Organizations that attempt to skip steps (eliminating Muda without addressing Mura or preventing Muri) discover that waste returns as soon as attention shifts elsewhere. The systemic conditions creating waste remain intact, continuously regenerating the symptoms teams worked to eliminate.

Key Insight: Address the 3Ms in reverse causal order: reduce Mura through production leveling, prevent Muri through capacity design and standard work, then eliminate Muda through targeted countermeasures. This sequence produces sustainable improvement because root causes are addressed before symptoms.

Within the Lean System

The Toyota 3M model sits at the foundation of lean manufacturing philosophy, providing the conceptual framework that explains why waste exists and how different types of inefficiency interact. The model connects directly to the Toyota Production System's two pillars (Just-in-Time and Jidoka) and supports the continuous improvement loop.

Connection to Just-in-Time

Just-in-Time production directly addresses Mura by producing only what is needed, when it is needed, in the amount needed. JIT eliminates the batch production that creates schedule unevenness, replacing it with level-loaded, mixed-model flow that smooths resource utilization. By producing in small batches synchronized to actual consumption, JIT prevents the overproduction Muda that batch production generates while simultaneously reducing the Mura that forces batch production in the first place.

Takt time calculation, a core JIT technique, establishes the pace at which production must occur to meet customer demand without overburden (Muri) or idle time (Muda). Pull systems prevent overproduction by authorizing work only when downstream processes signal need. The result is stable flow without the feast-or-famine cycles that characterize push production.

Connection to Jidoka

Jidoka (autonomation) prevents Muri by building quality into processes rather than depending on human vigilance to catch defects. When equipment can detect abnormalities and stop automatically, operators are not overburdened with constant monitoring. When work stops immediately upon defect detection, problems are addressed at their source rather than compounded through continued production.

Jidoka also addresses Muda by preventing defects from propagating through the value stream. The combination of automatic defect detection and immediate problem response eliminates the rework waste (Muda) that traditional inspect-and-sort quality approaches generate.

Connection to Continuous Improvement

The 3M framework guides kaizen project selection by revealing which type of waste currently limits performance most significantly. Facilities with high Mura benefit from production leveling projects. Those with evident Muri benefit from capacity addition, cross-training, or equipment reliability initiatives. Those with Mura and Muri under control can focus improvement efforts on specific Muda categories through targeted waste elimination.

Problem-solving using PDCA or A3 thinking investigates not only what waste exists (Muda) but why it exists (Mura and Muri). Root cause analysis that stops at identifying Muda has not reached the true root. Analysis must continue until the unevenness or overburden creating that waste is identified and addressed.

For the complete continuous improvement methodology, see Kaizen: The Complete Guide to Continuous Improvement in Manufacturing.

The next learning step after mastering the 3M model is How Lean Manufacturing Works: A Complete System Map, which shows how the 3M framework integrates with pillars, enablers, and improvement loops.

Q&A

Q: What is the difference between Muda, Mura, and Muri in the Toyota 3M model?

Muda is waste or non-value-adding activities that consume resources without benefiting the customer. Mura is unevenness or variation in schedules and workload that creates inconsistent resource utilization. Muri is overburden on people or equipment pushed beyond sustainable capacity. They connect causally: Mura creates Muri, which generates Muda, making all three interconnected rather than separate problems.

Q: Why can't you just eliminate Muda without addressing Mura and Muri?

Eliminating Muda without addressing Mura and Muri treats symptoms rather than causes. The unevenness (Mura) and overburden (Muri) that created the waste remain in place, continuously regenerating the Muda you eliminated. This explains why improvement efforts often fail to sustain because the root causes (Mura and Muri) were never addressed, so waste returns as soon as attention shifts to other priorities.

Q: Which should you address first: Muda, Mura, or Muri?

Address Mura first through production leveling and workload smoothing, which prevents the overburden (Muri) that uneven schedules create. With Mura reduced, design operations for sustainable capacity to prevent Muri. Only then eliminate specific Muda categories, because the root causes (Mura and Muri) no longer regenerate waste continuously. This sequence produces sustainable improvement rather than temporary symptom relief requiring constant re-intervention.

Q: How do you identify Mura in your operations?

Identify Mura through variation analysis examining patterns over time rather than single measurements. Plot daily production volumes, workload distribution, and demand patterns to reveal peaks and valleys indicating unevenness. Calculate coefficient of variation in production rates, compare maximum to minimum output, and analyze shift-to-shift differences. High variation indicates Mura requiring production leveling before waste elimination efforts will sustain.

Q: Can the Toyota 3M model be applied outside manufacturing?

Yes, the 3M model applies to any process where activities can be categorized as value-adding or non-value-adding. Service industries experience Muda (unnecessary approvals, redundant data entry), Mura (uneven workload distribution creating rush periods and idleness), and Muri (staff working unsustainable overtime or dealing with poor systems). The causal relationship remains: unevenness creates overburden, overburden generates waste. Address Mura first regardless of industry.
