The 8 Pillars of TPM: A Manufacturing Guide

The 8 pillars of TPM are the structural framework that organizes Total Productive Maintenance into eight distinct areas of activity, each addressing a specific dimension of equipment reliability and built on a foundation of 5S workplace organization. Originally seven pillars when the Japan Institute of Plant Maintenance first formalized the framework, an eighth pillar, office TPM, was added to extend the same proactive, waste-elimination logic to administrative processes supporting the plant.

Each pillar functions as a distinct program with its own activities, ownership, and metrics, but none of them operate in isolation. Autonomous maintenance depends on training to make operators competent, quality maintenance depends on planned maintenance data to investigate recurring defects, and every pillar depends on 5S to make emerging problems visible in the first place. Treating the eight pillars as a checklist to complete independently, rather than an interlocking system, is the single most common reason TPM programs stall after an initial burst of activity.

This guide covers each of the eight pillars in detail, how they group into core maintenance activities versus organizational support functions, and which pillar sequence produces the strongest results for a plant just beginning TPM implementation.

The Two Core Maintenance Pillars

Two pillars sit closest to daily equipment operation, and most TPM programs begin here because the results are the most immediately visible to operators and management alike.

Pillar #1: Autonomous Maintenance

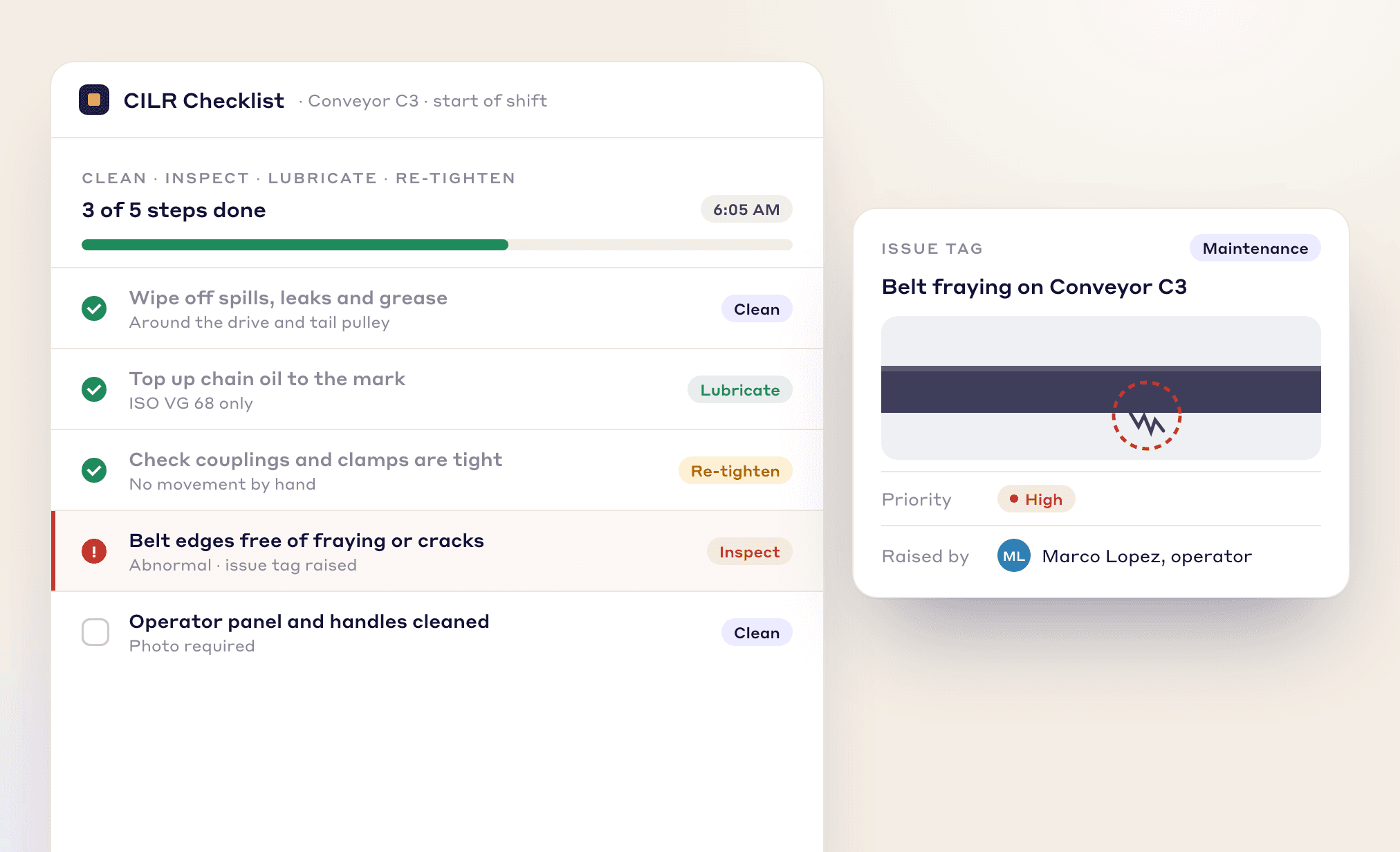

Autonomous maintenance transfers routine cleaning, lubrication, inspection, and minor tightening tasks from maintenance staff to the operators who run the equipment every shift. This is not a labor cost-cutting measure. Operators develop an intimate familiarity with normal operating sounds, vibrations, and temperatures that lets them detect the earliest signs of deterioration long before a scheduled maintenance inspection would catch the same issue. The full seven-step rollout process for this pillar is covered in [Autonomous Maintenance: The Seven-Step Process].

Pillar #2: Planned Maintenance

Planned maintenance schedules maintenance activities based on actual equipment condition and documented failure patterns rather than a fixed calendar interval or a reaction to breakdown. Where autonomous maintenance handles the routine daily tasks, planned maintenance handles the more technical interventions that require specialized maintenance staff training and equipment history data that operators do not have direct access to. The optimization strategies behind this pillar are covered in full in [Planned Maintenance: Optimization Strategies for Reliability].

Key Insight: Autonomous and planned maintenance divide equipment upkeep between daily operator-level tasks and technical maintenance-staff interventions, each depending on data the other pillar generates.

The Quality and Improvement Pillars

Two pillars connect TPM directly to a plant's broader quality and continuous improvement systems, ensuring equipment reliability efforts translate into measurable defect reduction.

Pillar #3: Quality Maintenance

Quality maintenance integrates root cause analysis into equipment upkeep, specifically targeting the subset of product defects traceable to equipment condition rather than process or material variation. This pillar requires close coordination with quality teams, since identifying whether a defect originates from equipment wear versus another source is a diagnostic step most maintenance technicians are not trained to perform alone.

In practice, this pillar shows up as three linked activities on the plant floor:

• Building condition-based checkpoints into the quality inspection process itself, so a drift in tolerance or an increase in a specific defect type triggers an equipment investigation automatically
• Cross-training quality inspectors and maintenance technicians to jointly review defect patterns, rather than logging each equipment-linked defect as an isolated quality event with no mechanical follow-up
• Feeding confirmed equipment-caused defects back into the planned maintenance schedule as a documented failure pattern, not just a one-time correction

Pillar #4: Focused Improvement

Distinguishing focused improvement from general kaizen. Focused improvement organizes small, cross-functional teams to systematically eliminate the six major losses in specific, targeted problem areas identified through loss data rather than general observation. It is TPM's dedicated continuous improvement mechanism, narrower in scope than plant-wide kaizen activity, since every focused improvement project traces directly back to one of the six defined loss categories rather than any improvement opportunity a team happens to notice.

A typical focused improvement cycle follows a consistent sequence:

1. Rank equipment or loss categories by impact using loss data already being collected
2. Assign a small, cross-functional team to the single highest-impact item rather than spreading effort across every piece of equipment
3. Run a structured root-cause investigation targeting that one loss category specifically
4. Confirm the fix holds before moving the team to the next-highest-impact item on the list

Key Insight: Quality maintenance and focused improvement both depend on defined data, defect-to-equipment traceability and loss categorization, to target their improvement efforts rather than acting on general impressions.

The Planning and Development Pillars

Two pillars operate earlier in the equipment lifecycle or focus on developing organizational capability rather than acting on equipment already in service.

Pillar #5: Early Equipment Management

Early equipment management plans maintainability, accessibility, and reliability into new equipment specifications before installation, using lessons learned from existing equipment failures to influence procurement and design decisions. Skipping this pillar means every new equipment purchase repeats the same maintenance problems the plant already knows how to avoid, simply because no one applied that knowledge before the purchase order was placed.

This typically plays out as a defined pre-purchase review, not an informal conversation:

• Maintenance and operator representatives review new equipment specifications before purchase, not after delivery
• Known problem patterns from similar machines already in the plant get flagged explicitly, such as hard-to-reach lubrication points or components with a documented history of premature failure
• Flagged issues get designed out at the specification stage, rather than becoming a recurring maintenance burden for the equipment's entire service life

Pillar #6: Training and Education

Training and education closes the technical and diagnostic skill gaps that would otherwise prevent operators from performing autonomous maintenance competently and prevent maintenance staff from executing planned maintenance to the standard the program requires. Without this pillar, the other seven pillars are staffed by people who have been assigned new responsibilities without the corresponding capability to execute them well.

Effective TPM training programs typically run two parallel tracks:

• Operator track: technical skills training that teaches operators to recognize specific signs of equipment wear on the machines they actually run day to day
• Maintenance staff track: the more advanced diagnostic and repair skills that autonomous maintenance frees maintenance technicians to focus on, rather than routine tasks
• Tracking mechanism: skill matrices tracking who has completed which training level, making training gaps visible before they become maintenance gaps

Key Insight: Early equipment management and training both address capability gaps before they become operational problems, one in equipment design and the other in workforce skill.

The Organizational Support Pillars

The final two pillars extend TPM's proactive, systematic approach beyond the shop floor itself, into safety practice and administrative process.

Pillar #7: Safety, Health, and Environment

This pillar ensures that equipment maintenance activities themselves do not introduce new hazards, since operators performing unfamiliar maintenance tasks for the first time face a genuine safety learning curve that needs deliberate management rather than being left to informal on-the-job correction.

This pillar's scope covers three distinct areas:

• Lockout-tagout compliance and proper personal protective equipment for each specific maintenance task an operator performs
• Clear escalation paths for hazards operators are not trained or authorized to handle themselves
• Environmental compliance around maintenance activity, since improper handling of lubricants, coolants, and replaced components creates regulatory exposure a purely mechanical view of maintenance would miss

Pillar #8: Office TPM

Office TPM extends TPM's core logic, eliminating losses through proactive, systematic activity, to administrative functions like scheduling, procurement, and documentation that support production without directly touching a machine. A plant with excellent shop-floor TPM but chronically slow parts procurement or scheduling errors is still losing production time, just through an administrative rather than mechanical failure point.

Typical office TPM activities include:

• Streamlining the process for ordering replacement parts, so a known failure does not turn into extended downtime while paperwork clears
• Standardizing maintenance documentation so equipment history is genuinely usable across shifts rather than scattered across individual notes
• Applying the same loss-elimination thinking used on the shop floor to administrative bottlenecks that slow the other seven pillars down

Key Insight: Safety and office TPM extend the same proactive, systematic logic that governs equipment maintenance to the human and administrative processes surrounding it.

Which Pillar Sequence Produces the Strongest Results

Not every plant should attempt all eight pillars simultaneously, and the sequence a plant follows meaningfully affects how quickly TPM produces visible results.

Starting With the Foundation

5S and autonomous maintenance are the standard starting point, since autonomous maintenance cannot function without the visual clarity 5S provides, and both pillars produce results operators can see within weeks rather than months. Starting with a pillar like early equipment management, by contrast, produces no visible near-term result since its benefits only appear on the next equipment purchase.

Sequencing the Remaining Pillars

Planned maintenance and training typically follow once autonomous maintenance is stable, since planned maintenance depends on the equipment condition data autonomous maintenance generates, and training needs a functioning autonomous maintenance program to train operators against. Quality maintenance, focused improvement, safety, and office TPM tend to layer in as the program matures and has genuine equipment and loss data to work from.

Key Insight: TPM sequencing should start with 5S and autonomous maintenance for early visible results, then add pillars that depend on the data those first two pillars generate.

The recommended year-one sequencing across all eight pillars is covered in detail in [TPM Launch: Year One Deployment and Pillar Development], which walks through how to build this rollout for a specific plant.

Within the Lean System

Connection to Lean Principles

The eight pillars collectively operationalize the lean principle that quality and reliability are built into daily work rather than achieved through inspection after the fact. Each pillar assigns a specific, proactive responsibility that prevents a category of loss rather than reacting to it once it has already occurred.

Connection to Lean Tools

Every pillar depends on the visual clarity established by [5S Methodology: A Complete Guide for Manufacturing], which is why 5S functions as TPM's structural foundation rather than an optional prerequisite. Quality maintenance draws directly on [A3 Problem Solving: A Practical Guide to Root Cause Analysis] to investigate and document equipment-caused defects that recur across multiple production runs.

Connection to Continuous Improvement

Focused improvement is TPM's direct application of [Kaizen: The Complete Beginner's Guide to Continuous Improvement], narrowed specifically to the six major losses rather than open-ended improvement opportunities. Successful loss-elimination projects from focused improvement are strong candidates for [Yokoten: Horizontal Deployment of Kaizen Best Practices] once proven on one piece of equipment.

Frequently Asked Questions

Q: What are the 8 pillars of TPM?

Autonomous maintenance, planned maintenance, quality maintenance, focused improvement, early equipment management, training and education, safety and environment, and office TPM. All eight pillars are built on a genuine 5S foundation that keeps emerging equipment issues visible before they escalate into full production failures.

Q: Which TPM pillar should a plant start with?

5S and autonomous maintenance together, since autonomous maintenance depends entirely on the visual clarity 5S establishes, and both produce results operators can see within just a few weeks of starting. Pillars like early equipment management show no near-term result and typically layer in much later in the program.

Q: What is the difference between planned maintenance and quality maintenance pillars?

Planned maintenance schedules technical maintenance interventions based on documented equipment condition data over time. Quality maintenance specifically investigates and prevents the subset of product defects that trace back to equipment condition, requiring close coordination with quality teams rather than maintenance staff working alone.

Q: What does the focused improvement pillar actually do?

It organizes small, cross-functional teams to systematically eliminate the six major losses in specific, data-identified problem areas across the plant floor. It is narrower and more targeted than general kaizen activity, since every project traces directly back to one clearly defined loss category rather than any opportunity.

Q: Why was office TPM added as an eighth pillar?

The framework originally had seven pillars when it was first formalized by the Japan Institute of Plant Maintenance. Office TPM was added later to extend the same proactive, systematic loss-elimination logic to administrative functions like scheduling and procurement, since production losses occur administratively too.
