First piece (first article) check poster
A first piece check (often called a first article check on the floor) confirms that the first part made after a start-up or change is right before the rest of the batch is run. This poster lists when to do it, the five steps of the check and what to do if the part fails. It is not the same as a formal first article inspection (FAI) for a new part number, which is a full documented inspection.
Download the poster
The PNG is free to download now. The print-ready vector PDFs open after a short form, once.
Free to print and share with your team. Enter your name and work email once to download.

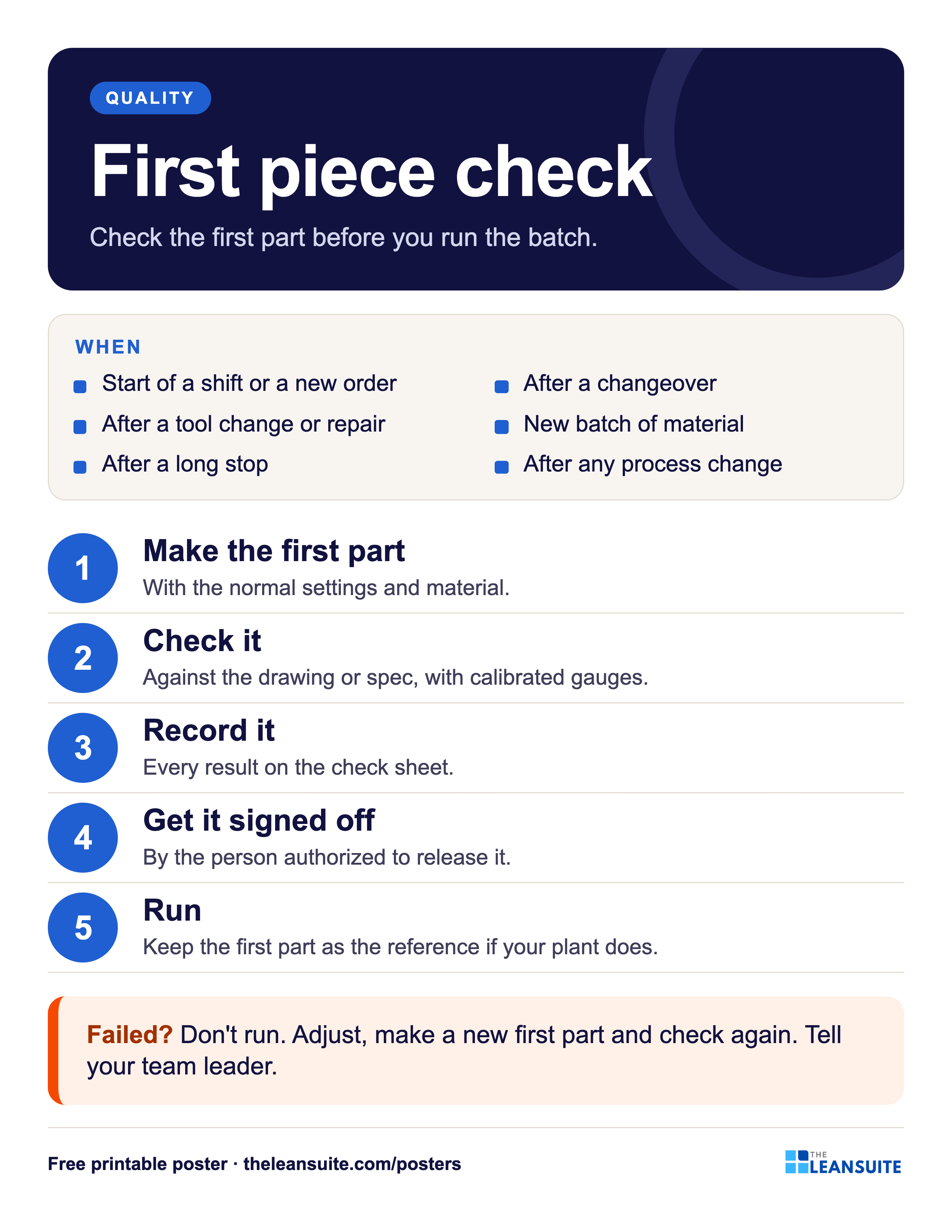

When to check, five steps from making the first part through sign-off to run, and a band on what to do if it fails.The words on the poster
First piece check
Check the first part before you run the batch.
When
- Start of a shift or a new order
- After a changeover
- After a tool change or repair
- New batch of material
- After a long stop
- After any process change
- Make the first part With the normal settings and material.
- Check it Against the drawing or spec, with calibrated gauges.
- Record it Every result on the check sheet.
- Get it signed off By the person authorized to release it.
- Run Keep the first part as the reference if your plant does.
- Failed? Don't run. Adjust, make a new first part and check again. Tell your team leader.
On the floor
How to use it
Putting the First piece (first article) check poster to work
- 1
Post it at every machine or line that has a changeover.
- 2
Make the WHEN list match your own control plan before you print.
- 3
Keep the check sheet and the right gauges next to the poster.
- 4
Pair it with the free changeover checklist and the first article inspection report.
Which size to print
- 24 x 36 in or A2: a main wall or team board, read from a few metres away.
- 18 x 24 in or A3: a station or notice board. The A3 file also fits 11 x 17 in paper.
- Letter or A4: a clipboard, binder or handout, on any office printer.
Every PDF is vector, so it stays sharp at full size. Nothing runs to the edge of the page, so no bleed is needed.
