Poka-yoke types poster
Poka-yoke means mistake-proofing: designing the work so a mistake cannot happen, or is caught the moment it does. Shigeo Shingo described three methods: contact (shape or size), fixed-value (a set count) and motion-step (a set sequence), and two functions: control devices that stop the process and warning devices that alert someone. This poster shows each with an everyday shop floor example.
Download the poster
The PNG is free to download now. The print-ready vector PDFs open after a short form, once.
Free to print and share with your team. Enter your name and work email once to download.

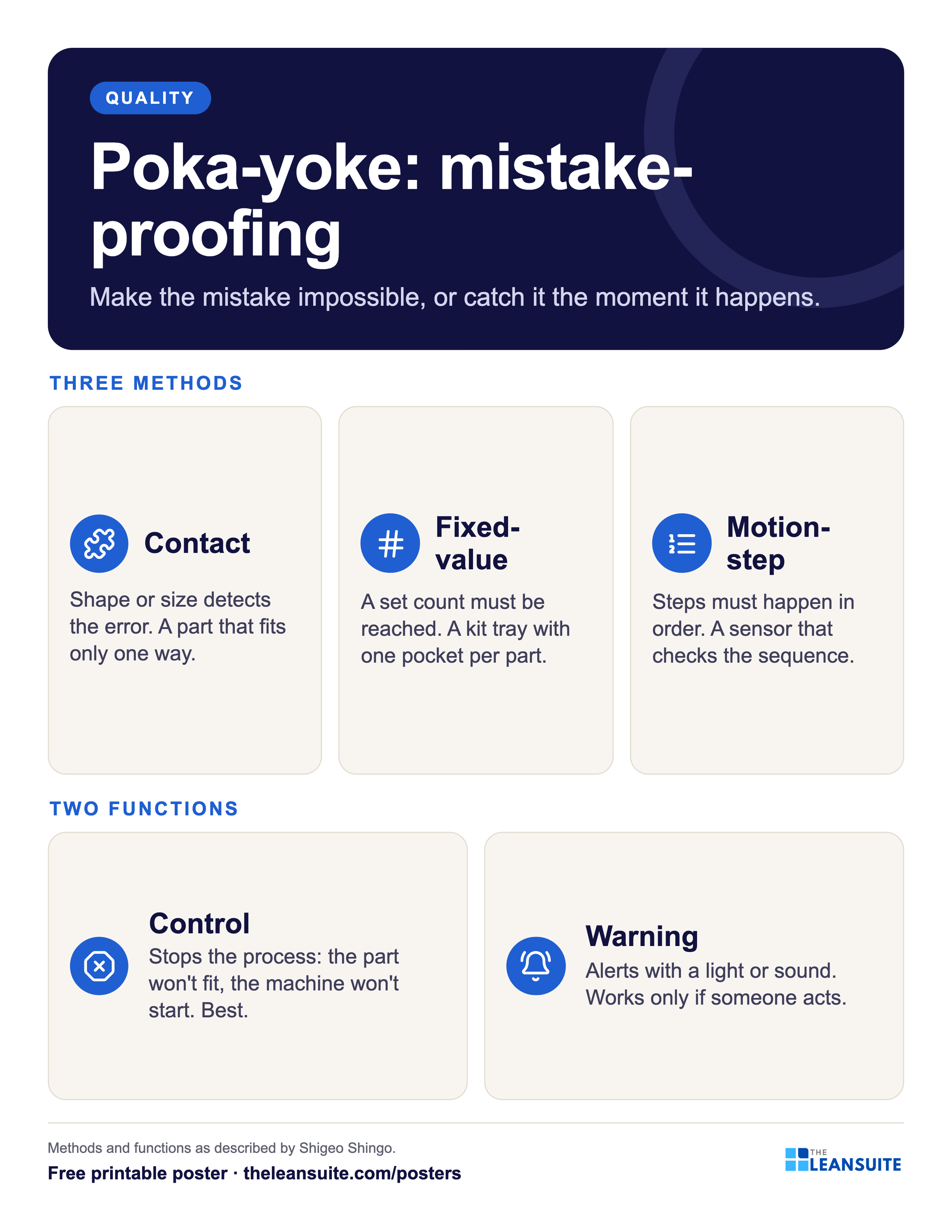

Three cards for the contact, fixed-value and motion-step methods, and a comparison of control and warning devices.The words on the poster
Poka-yoke: mistake-proofing
Make the mistake impossible, or catch it the moment it happens.
Three methods
- Contact Shape or size detects the error. A part that fits only one way.
- Fixed-value A set count must be reached. A kit tray with one pocket per part.
- Motion-step Steps must happen in order. A sensor that checks the sequence.
Two functions
- Control Stops the process: the part won't fit, the machine won't start. Best.
- Warning Alerts with a light or sound. Works only if someone acts.
Methods and functions as described by Shigeo Shingo.
On the floor
How to use it
Putting the Poka-yoke types poster to work
- 1
Put it in the engineering or CI area where error-proofing ideas are discussed.
- 2
Use it when a defect comes from a mistake: which method could prevent it?
- 3
Ask: can this warning device become a control device?
- 4
Pair it with the free poka-yoke worksheet.
Which size to print
- 24 x 36 in or A2: a main wall or team board, read from a few metres away.
- 18 x 24 in or A3: a station or notice board. The A3 file also fits 11 x 17 in paper.
- Letter or A4: a clipboard, binder or handout, on any office printer.
Every PDF is vector, so it stays sharp at full size. Nothing runs to the edge of the page, so no bleed is needed.
Sources and notes
- Methods and functions as described by Shigeo Shingo, Zero Quality Control: Source Inspection and the Poka-yoke System (Productivity Press, 1986).
