Root cause analysis training presentation: 5 whys and fishbone
Root cause analysis (RCA) is the work of finding why a problem happened, so it can be fixed for good rather than patched. This free deck teaches a team the basics in about 35 minutes. Its 18 editable slides cover symptoms versus root causes, when to use RCA, describing and containing the problem, the 5 whys, the fishbone (6M) diagram, when to use each, verifying the cause, fixing and checking, an illustrative example, the common mistakes, a fishbone activity on a real problem and four check questions with answers. Every slide has speaker notes.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
The title Root cause analysis, fix the cause, not the symptom, on a navy background with the LeanSuite logo.A look inside
What is in the 18 slides
For operators, team leaders, engineers and quality staff. Widescreen, in plain language, with speaker notes on every slide.

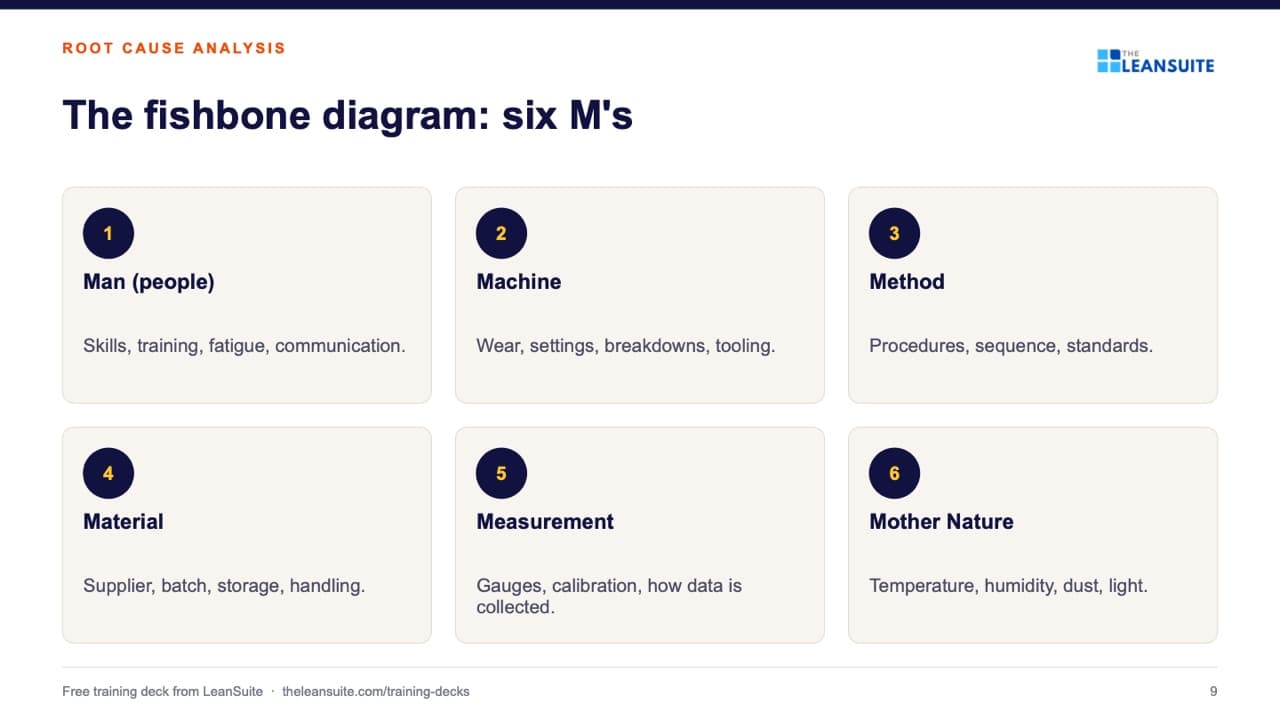

Slide 9: The fishbone diagram: six M's

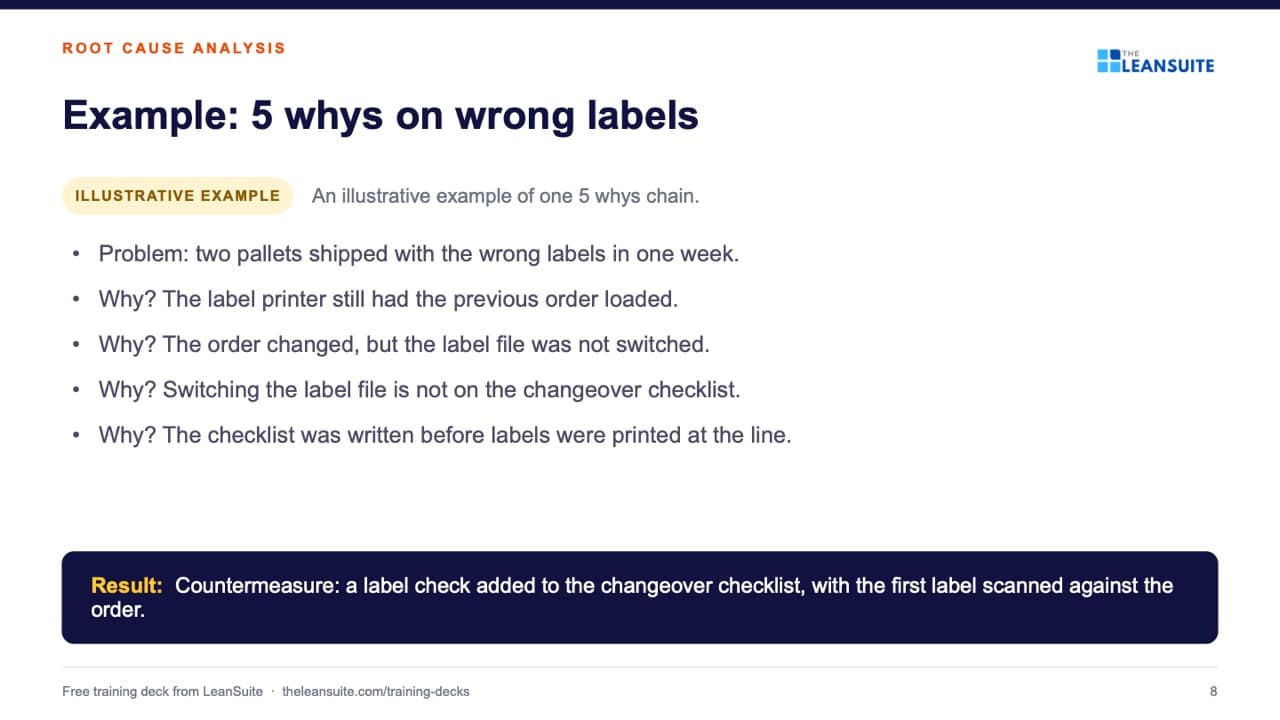

Slide 8: Example: 5 whys on wrong labels

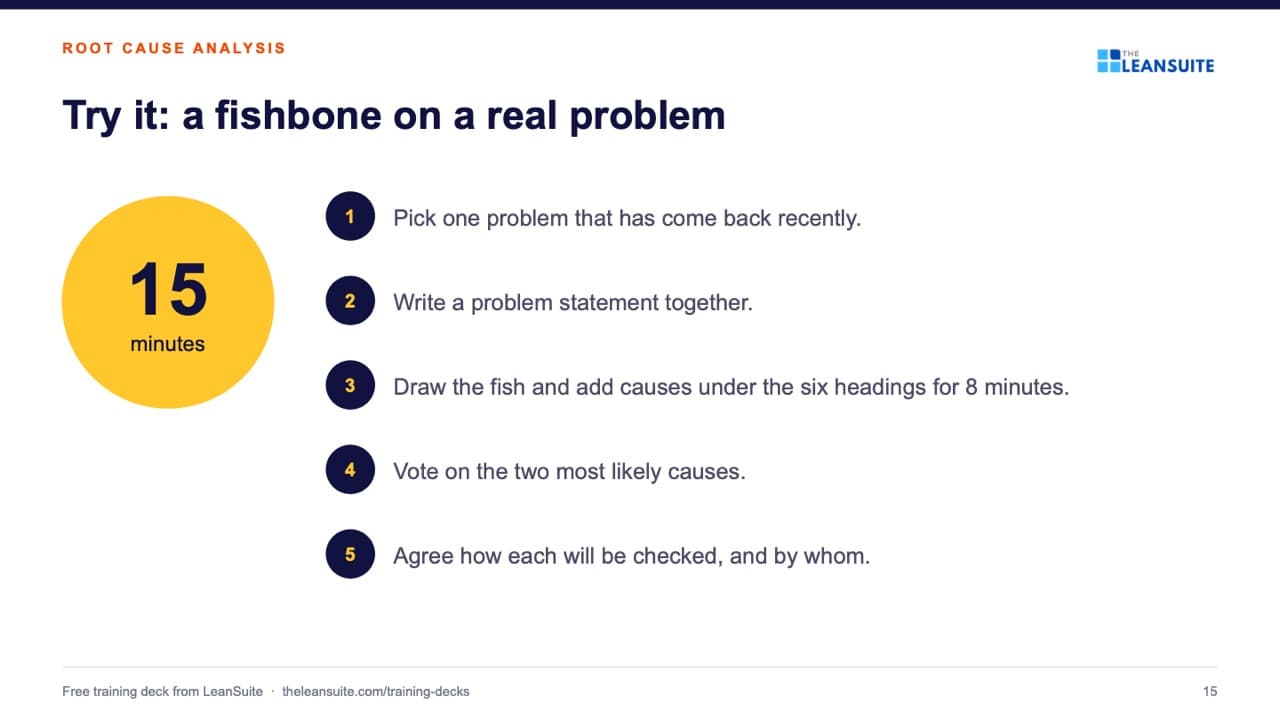

Slide 15: Try it: a fishbone on a real problem
- 1Root cause analysis: fix the cause, not the symptomCover
- 2AgendaSymptoms and root causes · Describe and contain the problem · The 5 whys · The fishbone diagram · Verify, fix and check, plus an activity
- 3Symptoms, causes and root causesA root cause is the cause that, once removed, stops the problem coming back.
- 4When to use root cause analysisProblems that keep coming back.
- 5Step 1: Describe the problemWhat, where, when and how much: facts, not guesses.
- 6Step 2: Contain it firstProtect the customer and the next process.
- 7The 5 whysAsk why the problem happened, then why that happened, until you reach a cause you can act on.
- 8Example: 5 whys on wrong labelsAn illustrative example of one 5 whys chain.
- 9The fishbone diagram: six M'sMan (people), Machine, Method, Material, Measurement, Mother Nature
- 10How to run a fishbone sessionWrite the problem statement at the head of the fish.
- 115 whys or fishbone?Many teams use both: the fishbone to list causes, the 5 whys to go deep on the likely ones.
- 12Step 3: Verify the root causeCheck it with data or a test before you act.
- 13Step 4: Fix it and checkChoose a countermeasure that removes or controls the root cause.
- 14Common mistakesJumping to a solution before defining the problem.
- 15Try it: a fishbone on a real problemA 15-minute team activity
- 16Check your understanding4 check questions
- 17AnswersThe answers, to discuss
- 18Key points and next stepsNext: check the two causes we picked, by the dates we set.
The 35-minute session, slide by slide
- Slides, about: 20 minutes
- Activity (slide 15): 15 minutes
Present · 14 slides
- 1Root cause analysis: fix the cause, not the symptom
- 2Agenda
- 3Symptoms, causes and root causes
- 4When to use root cause analysis
- 5Step 1: Describe the problem
- 6Step 2: Contain it first
- 7The 5 whys
- 8Example: 5 whys on wrong labels
- 9The fishbone diagram: six M's
- 10How to run a fishbone session
- 115 whys or fishbone?
- 12Step 3: Verify the root cause
- 13Step 4: Fix it and check
- 14Common mistakes
Do the activity · 1 slide
- 15Try it: a fishbone on a real problem
Check and follow up · 3 slides
- 16Check your understanding
- 17Answers
- 18Key points and next steps
About 20 minutes of slides and 15 minutes of activity. Present: slides 1 to 14 (Root cause analysis: fix the cause, not the symptom; Agenda; Symptoms, causes and root causes; When to use root cause analysis; Step 1: Describe the problem; Step 2: Contain it first; The 5 whys; Example: 5 whys on wrong labels; The fishbone diagram: six M's; How to run a fishbone session; 5 whys or fishbone?; Step 3: Verify the root cause; Step 4: Fix it and check; Common mistakes). Do the activity: slide 15 (Try it: a fishbone on a real problem). Check and follow up: slides 16 to 18 (Check your understanding; Answers; Key points and next steps).
How to run it
Running the session
- 1
Prepare
Read the speaker notes once and swap the illustrative example for one from your own area if you have it. Print the PDF if people like a handout.
- 2
Present
The slides take about 20 minutes. Every slide has notes, so you can talk from them rather than read the slide.
- 3
Do the activity
Pick one problem that has come back recently. The activity slide takes the team through it step by step; allow 15 minutes.
- 4
Check and follow up
Ask the check questions before showing the answers, then agree one next step with an owner and a date before people leave.
The check questions
- 1. What is the difference between a symptom and a root cause?
- A symptom is what you see. The root cause is why the process allowed it; removing it stops it coming back.
- 2. What are the six M's?
- Man, machine, method, material, measurement and mother nature.
- 3. Why contain before the root cause work?
- To protect the customer and the next process while the cause is found.
- 4. Why is human error not a root cause?
- It does not explain why the process allowed the error. Ask why again until you reach something you can change.
Templates and guides to go with it
- Root cause analysis templateOne report from problem statement to proof: containment, evidence, analysis, verified causes, actions and the effectiveness check.
- 5 Whys templateA problem statement, a why chain that can branch, evidence for every answer, root causes and countermeasures that are checked.
- 5W1H templateWho, what, when, where, why and how: a problem statement built from checked facts, and an action plan with nothing left open.
- Is / is not analysis templateWhat, where, when and extent with is, is not, distinctions and changes, then each possible cause tested against every pair and ranked.
- 8D report templateD0 to D8 with targets, containment counts, occurrence, escape and systemic causes, verified actions and a worked example.
- Fault tree analysis templateA drawing area with the FTA symbols, an event table with probabilities and minimal cut sets, and the gates worked out bottom-up in Excel.
- Topic: Root cause analysis and problem solvingEvery guide we have on the subject, sorted.
Read more
- How to Perform an Effective Root Cause Analysis
- 5 Whys: Root Cause Analysis Method for Manufacturing
- Fishbone Diagram: A Root Cause Analysis Visual Tool
- Root cause analysis: which tool, in what order, worked through
- Draft the 5 Whys, 4M1D and fishbone with LeanSuite's RCA Agent, edit the draft, and keep the countermeasures as actions with an owner and a due date
- 5 Whys training deck: the method on its own, with Ohno's example and an exercise
After the session
Put it on the wall
Free printable posters on the same subject, so the team sees it every day: a PNG to download now, and print-ready PDFs from Letter to 24 x 36 in.
5 whys poster
8D problem solving poster
Which problem-solving tool poster
Incident investigation steps poster
5W1H problem description poster
Is / Is Not analysis poster
Fishbone 6M questions poster
Human error root causes poster
Why made, why missed poster
Strong and weak countermeasures poster
Breakdown analysis poster
A3 report layout poster
FAQ
Root cause analysis training presentation: common questions
About 35 minutes: roughly 20 minutes of slides, a 15-minute fishbone on one of your own problems and the check questions. For a shorter session, present the 5 whys and fishbone slides and skip the activity.
Yes. It explains each method, when to use which, and how to combine them: the fishbone to list possible causes and the 5 whys to go deep on the likely ones, then a check with data before acting.
It teaches the root cause part. 8D and formal incident investigations add steps such as team formation, interim containment and sign-off; the free 8D report and incident investigation templates cover those.
Yes. The PowerPoint file is fully editable, including the speaker notes. Swapping the illustrative example for one of your own problems makes the session land better.
