I-MR chart template (individuals and moving range)
An I-MR chart (individuals and moving range chart, also called an XmR chart) is the control chart for one reading at a time: one viscosity per batch, one torque audit per shift, the changeover minutes each day. The individuals (I) chart plots each reading against a centre line and control limits. The moving range (MR) chart plots the difference between each reading and the one before, which is how the chart measures short-term variation when there are no subgroups. The limits are the mean ± 2.66 × the average moving range, and the moving range limit is 3.267 × the average moving range (NIST/SEMATECH e-Handbook of Statistical Methods, sections 6.3.2.1 and 6.3.2.2). Page 1 of the PDF has the header, 25 readings with their moving ranges, and both charts with lines for the limits and for 1σ and 2σ. Page 2 has the formulas and constants, five run rules, which chart fits which data, when to recalculate and what to do when a rule fires. Page 3 is the worked example drawn as both charts, with a reaction log. The Excel version takes up to 100 readings, sets the limits from a baseline you choose and keeps them frozen for later readings, flags five Western Electric rules on the I chart and points above the limit on the MR chart, starts a second phase with its own limits after a deliberate change, and draws both charts.

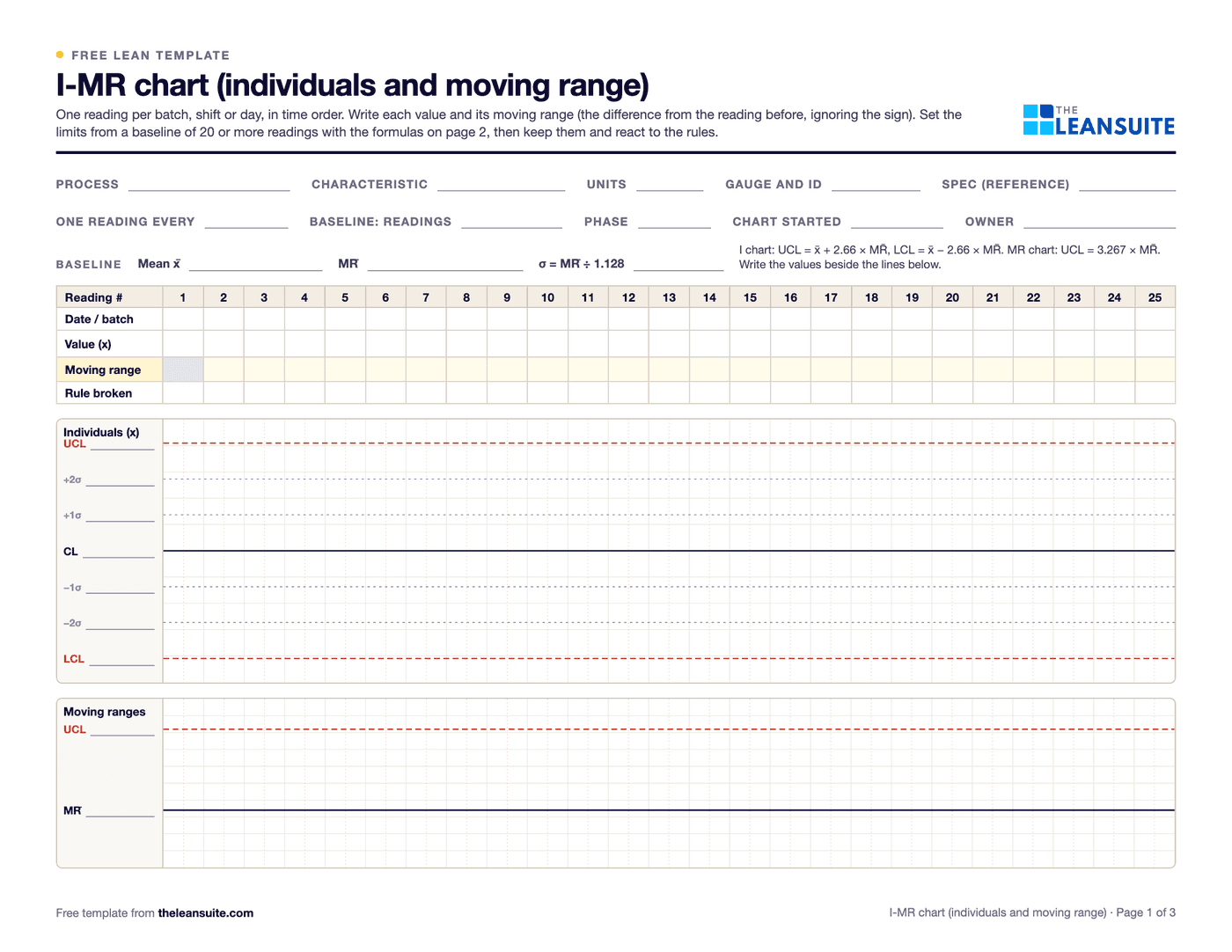

Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
Header fields for process, characteristic, units, gauge and specification, boxes for the baseline mean, average moving range and sigma, a table for 25 readings with date, value, moving range and rule broken, and an individuals chart with lines for the limits and for 1 and 2 sigma above a moving range chart.When to use it
When to use an I-MR chart
- When you get one measurement per period and no subgroups: a viscosity or pH per batch, a torque audit per shift, daily changeover minutes, scrap in kilograms per day.
- When readings come slowly or each one costs a lot, such as a destructive test or a lab result per lot, so waiting for subgroups of 4 or 5 would hide a change for days.
- For a number tracked once a day or week, to tell a real change from normal ups and downs before anyone reacts.
- Not when you can measure small subgroups of parts made one after another (use an X-bar and R chart), and not for the share of units defective (a p chart) or counts of defects (a c or u chart).
- Not for readings taken so close together that each one follows the last, such as an oven temperature every minute: the limits come out too narrow and the chart signals all the time.
How to fill it in
- 1
Check the measurement
The gauge or lab method has to see the variation you want to chart. A gauge R&R study answers that before you start.
- 2
Record readings in time order
One row per batch, shift or day, with the date or batch number and a note of anything that changed. The moving range is the difference from the reading before, ignoring the sign.
- 3
Set the limits from a baseline
Take 20 or more readings from normal running. Centre line = their mean; MR̄ = the mean of their moving ranges. I chart limits = mean ± 2.66 × MR̄; MR chart upper limit = 3.267 × MR̄.
- 4
Freeze the limits
Judge every later reading against the same limits. Treat limits from fewer than about 100 readings as trial limits and update them once, if nothing in the process has changed.
- 5
React to the rules
A point beyond a limit, 2 of 3 beyond 2σ, 4 of 5 beyond 1σ, 8 in a row on one side or 6 in a row rising or falling. Find what was different for that reading, fix it and log it.
- 6
Start a new phase after a deliberate change
A new machine, material or method gets its own baseline and limits. Do not recalculate because the latest points look different: catching that is the chart's job.
Run rules
The five rules the Excel version flags
The Western Electric rules as listed in the NIST/SEMATECH e-Handbook, section 6.3.2, with σ = MR̄ ÷ 1.128. Rules 2 to 5 can be switched off: each one catches smaller shifts and raises false alarms, from about one in 371 points with rule 1 alone to about one in 92 with all of them (NIST).
| Rule | Signal | Causes to check first |
|---|---|---|
| 1 | One point beyond a control limit | A one-off: a wrong setting, a different material lot, a measurement or typing error |
| 2 | 2 of 3 points in a row more than 2σ from the centre line, same side | The average starting to shift |
| 3 | 4 of 5 points in a row more than 1σ from the centre line, same side | A small shift that has held for several readings |
| 4 | 8 points in a row on one side of the centre line | The average has moved: a new lot, setting, supplier or person |
| 5 | 6 points in a row, each higher than the last (or each lower) | Drift: wear, build-up, a material that changes slowly |
| MR | A moving range above 3.267 × MR̄ (the only rule on the MR chart) | A sudden jump between two readings |
1
- Signal
- One point beyond a control limit
- Causes to check first
- A one-off: a wrong setting, a different material lot, a measurement or typing error
2
- Signal
- 2 of 3 points in a row more than 2σ from the centre line, same side
- Causes to check first
- The average starting to shift
3
- Signal
- 4 of 5 points in a row more than 1σ from the centre line, same side
- Causes to check first
- A small shift that has held for several readings
4
- Signal
- 8 points in a row on one side of the centre line
- Causes to check first
- The average has moved: a new lot, setting, supplier or person
5
- Signal
- 6 points in a row, each higher than the last (or each lower)
- Causes to check first
- Drift: wear, build-up, a material that changes slowly
MR
- Signal
- A moving range above 3.267 × MR̄ (the only rule on the MR chart)
- Causes to check first
- A sudden jump between two readings
A filled-in example
Illustrative, not a benchmarkAn example: the viscosity of a water-based coating, one reading per batch, specification 380 to 450 cP (illustrative numbers). The Excel version's Example sheet has the same 30 readings.
The example's 30 batches on the I chart and the MR chart
Individuals (I) chart, viscosity in cP
Moving range (MR) chart, cP
I chart: mean ± 2.66 × MR̄MR chart: UCL = 3.267 × MR̄
MR̄ is the average of the 19 moving ranges in the baseline: 182 ÷ 19.
- UCL =412.0 + 2.66 × 9.58= 437.5 cP
- LCL =412.0 − 2.66 × 9.58= 386.5 cP
- MR UCL =3.267 × 9.58= 31.3 cP
Individuals chart of 30 viscosity readings, one per batch, with limits from batches 1 to 20: mean 412.0 cP, UCL 437.5 cP, LCL 386.5 cP. Batch 24, at 441 cP, is the only point outside the limits, although it is inside the 450 cP specification. Moving range chart: MR-bar 9.58 cP and UCL 31.3 cP; batch 24's moving ranges, 20 and 19, are under it.
- Baseline, batches 1 to 20: mean = 8,240 ÷ 20 = 412.0 cP. The 19 moving ranges add to 182, so MR̄ = 9.58 cP.
- I chart: 2.66 × 9.58 = 25.48, so UCL = 437.5 cP and LCL = 386.5 cP. MR chart: UCL = 3.267 × 9.58 = 31.3 cP.
- Batch 24 reads 441 cP: above the UCL (rule 1), although it is inside the 450 cP specification. Its moving ranges, 20 and 19, stay under 31.3.
- The thinner flow meter had not been reset after a line flush, so batch 24 got less thinner. No other rule fires in the 30 batches.
The chart flagged a batch that the specification check passed. The meter reset was added to the flush checklist and logged. Batch 24 is outside the baseline, so the limits stay at 386.5 to 437.5 cP.
Common mistakes
Using the specification as control limits
Specification limits say what the customer accepts; control limits say what the process does. Batch 24 in the example passed the specification and still showed a change worth finding.
Limits computed from the data you are judging
Recalculating the limits each time new points come in lets a shift drag the limits along with it, so it never shows. Set them from a baseline, then freeze them.
Reacting to every point
A reading higher than the last one is not a signal. Adjusting the process for points inside the limits with no rule broken chases normal variation; act on the rules and leave the rest.
Trusting the rules on skewed or linked readings
The zone rules assume roughly normal readings. Strongly skewed data, such as time between failures, gives more false alarms, and readings so close together that each follows the last make the limits too narrow. Look at a histogram and the time order first.
Download the template
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
Run this template in LeanSuite
In LeanSuite quality checks run as digital checklists with number limits, an out-of-spec answer can raise a tag or start a CAPA automatically, and KPI Builder tracks quality KPIs against targets.
See it in a 45-minute demoIn the lean glossary
FAQ
I-MR chart template (individuals and moving range): common questions
