Pallet racking inspection checklist
A pallet racking inspection is a check of the racking for damage and misuse: bent uprights, damaged beams, missing beam locks, loose base plates, missing load signs and overloaded bays. Most racking damage comes from forklift impacts, and a damaged upright can carry much less than its rating. A common way to decide what to do about damage is a traffic-light rating: green for damage within the maker's limits, keep using and check again; amber for damage beyond the limits, unload and repair within four weeks; red for serious damage, offload and isolate the bay now. In the UK this rating is set out in SEMA's guidance on rack inspection. In the US, OSHA 29 CFR 1910.176(b) requires stored material to be stable and secure against sliding or collapse; it does not set a damage rating. Page 1 of this template has 15 checks in four groups for up to eight aisles, with the rating key. Page 2 is a damage log with aisle, bay, beam level, component, damage, rating, whether the bay was offloaded, repair and sign-off, and a layout sketch. The Excel version has the checks for up to ten aisles with counts, and a damage log that sets the repair due date from the rating, treats amber as red once the repair days pass, and counts damage by rating.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
When to use it
When to use a pallet racking inspection checklist
- For regular rack checks: a quick visual weekly and a recorded inspection monthly are common.
- After any forklift impact with the racking, however small.
- When racking is moved, reconfigured or loads change.
- To keep a record of damage found and repaired between expert inspections.
How to fill it in
- 1
Walk each aisle from the floor
Both sides, at the base and up the uprights. Most impact damage is in the bottom few feet.
- 2
Mark each check per aisle
No damage, or the rating: green, amber or red. Use the damage limits from your rack maker.
- 3
Act on red at once
Offload the bay and isolate it before you leave the aisle, and keep it out of use until it is repaired.
- 4
Log every damaged component
Aisle, bay, beam level, component and what is wrong, so the right part is repaired.
- 5
Repair amber within four weeks
Unload it and do not reload until repaired. Amber not repaired in time is treated as red.
- 6
Check repairs and sign off
Someone authorized checks each repair before the bay goes back into use.
What's on the checklist

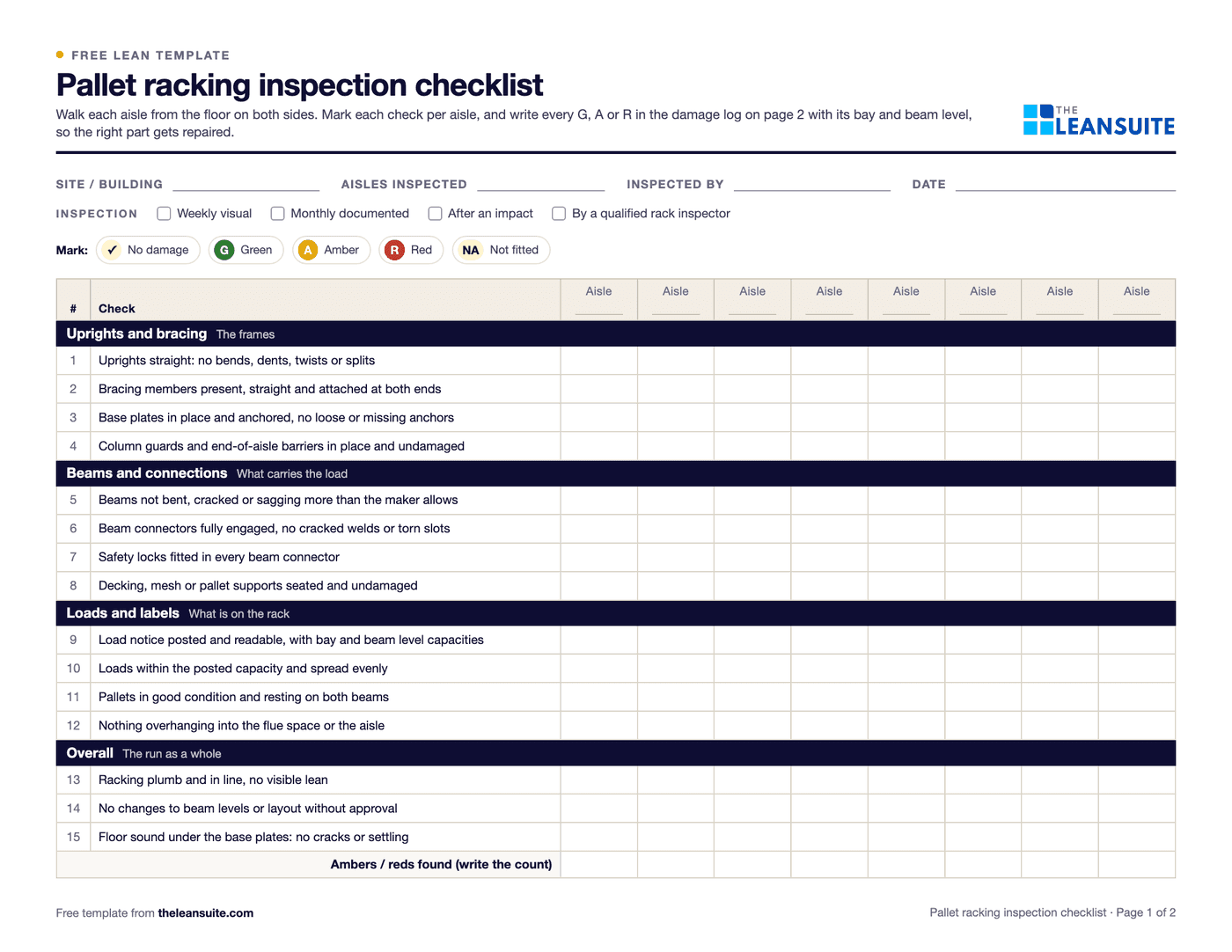

The 15 checks on the pallet racking inspection checklist
On the sheet each check is marked per aisle: no damage, or green, amber or red by your rack maker's damage limits. Every green, amber and red goes in the damage log with its bay and beam level.
Uprights and bracing
The frames
- 1Uprights straight: no bends, dents, twists or splits
- 2Bracing members present, straight and attached at both ends
- 3Base plates in place and anchored, no loose or missing anchors
- 4Column guards and end-of-aisle barriers in place and undamaged
Beams and connections
What carries the load
- 5Beams not bent, cracked or sagging more than the maker allows
- 6Beam connectors fully engaged, no cracked welds or torn slots
- 7Safety locks fitted in every beam connector
- 8Decking, mesh or pallet supports seated and undamaged
Loads and labels
What is on the rack
- 9Load notice posted and readable, with bay and beam level capacities
- 10Loads within the posted capacity and spread evenly
- 11Pallets in good condition and resting on both beams
- 12Nothing overhanging into the flue space or the aisle
Overall
The run as a whole
- 13Racking plumb and in line, no visible lean
- 14No changes to beam levels or layout without approval
- 15Floor sound under the base plates: no cracks or settling
A filled-in example
Illustrative, not a benchmarkAn example: a monthly inspection of six aisles (illustrative).
- Aisle 3, bay 12: front upright bent at the base, rated red. The bay was offloaded and isolated before the inspector moved on.
- Aisle 5, bay 4: a beam lock missing at level 2, rated amber; a lock was fitted the same week.
- Aisle 1, bay 7: a small dent in a column guard, rated green, logged to check next month.
- Two load notices were missing and were reprinted.
The red upright was replaced by the rack supplier and signed off before the bay was reloaded. The team also asked why aisle 3 was hit and found pallets being turned at the end of the aisle; they added an end barrier.
Common mistakes
Leaving red loaded
A bay with serious damage stays loaded 'until the repair comes'. Offload and isolate it now.
Straightening uprights
Bent steel should be replaced, not hammered back. Follow the rack maker's guidance for repairs.
Not reporting impacts
Drivers who fear blame do not report hits. Make reporting the expected thing to do.
No load signs
Without posted capacities nobody can tell whether a bay is overloaded.
