Lean transformation roadmap
A lean transformation roadmap is the plan for moving a plant from running lean projects to running on a lean management system: the phases in order, what has to be true before each phase ends, the workstreams with their milestones by quarter, a pilot area to prove it on, the metrics to move and how often leaders review it. This template follows the six phases in the lean transformation guide on this site, from assessment and current state to sustained improvement tied to strategy, each with the condition to start it and three exit criteria. Page 1 is the roadmap: six workstreams over eight quarters, the pilot area choice on an example 1 to 3 scale, the metrics with baseline, target and the actual each quarter, the governance cadence and the risks. Page 2 has the phase gates and a worked example. The Excel version takes 60 milestones, works out a status for each at a status date by a rule made for the template, draws a 24-month Gantt chart, adds up % done and % due by phase and by workstream, tracks the gap closed on each metric and keeps the phase gates, the pilot choice, the cadence and a risk log.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
When to use it
When to use a lean transformation roadmap
- When a plant decides to move from scattered lean projects to a lean management system and needs a plan its leadership team will review.
- After a lean readiness assessment, to turn its findings into phases, a model line and dates.
- To put a lean transformation plan in front of a plant manager or a board with the workstreams, milestones and metrics on one page.
- Every quarter of a running program, to check progress by phase and workstream and re-plan the quarters ahead.
How to fill it in
- 1
Assess the current state first
Walk the floor and draw a current-state value stream map with measured cycle times, queues and inventory. Write the baseline of each metric you will track, with its source and the date it was measured.
- 2
Pick the model line
Score the candidate areas on the five pilot criteria: a significant product family, manageable complexity, a supportive supervisor, problems the team already sees, results you can measure. Start with the highest score and agree it with the steering group.
- 3
Set the targets and the cadence
Give each metric a target and say whether lower or higher is better. Agree who meets and how often; a monthly steering group is common, with a weekly review of the model line and a daily team meeting on it.
- 4
Plan each workstream by quarter
Write the milestones in the quarter they are due, each with one owner, a start and a due date. On the model line, the foundations come first: 5S, standard work and visual management, then flow and pull.
- 5
Review the status at every steering group
Write the done dates and the quarterly actuals, then read each milestone's status: Done, Late, Due soon, In progress or Not started, a rule made for this template. Act first on late milestones that hold up a phase gate.
- 6
Pass each gate before the next phase
Tick a phase's three exit criteria on page 2 and start the next phase when all three are met. Re-plan the next quarters at each quarterly review.
What each phase gate needs
The six phases of a lean transformation and their 18 exit criteria

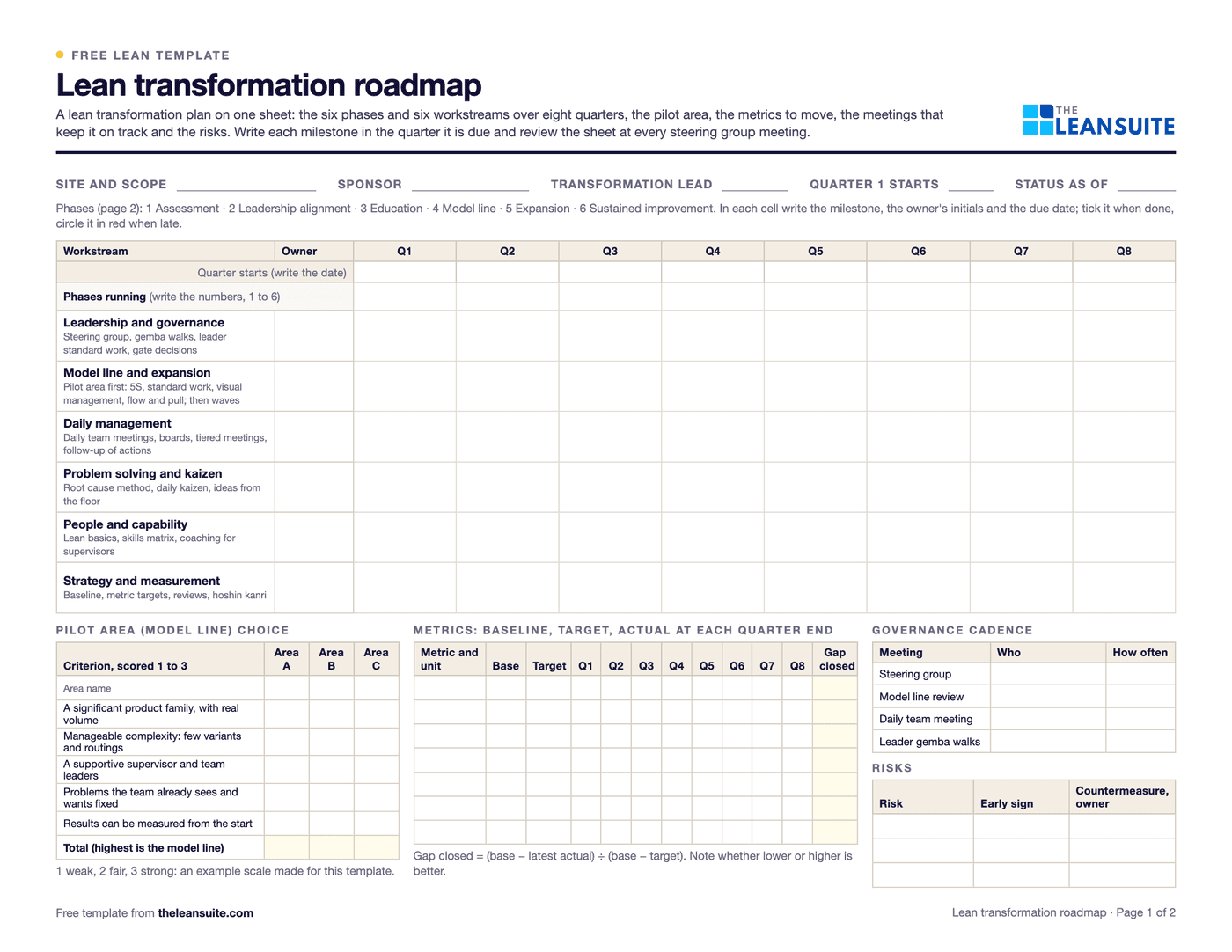

On page 2 of the roadmap and on the Phase gates sheet of the Excel version. Each phase has a condition to start it; tick its three exit criteria, and start the next phase when all three are met.
Assessment and current state
Starts when a sponsor is named and the scope is agreed
- 1Current-state value stream map drawn on the floor, with measured times and inventory
- 2Baseline written for every roadmap metric, with its source and date
- 3Gaps listed, including how problems are raised and decisions made today
Leadership alignment and readiness
Starts when the current state and its gaps are on paper
- 4Senior leaders agree what it asks of them: gemba time, coaching and people
- 5Business objectives written, with a target for every roadmap metric
- 6Lean champions named with protected time; a steering group meets on a set cadence
Education and foundational training
Starts when leaders have committed time and people
- 7Pilot team and leaders trained on the eight wastes, standard work and visual management
- 8Daily meeting and root cause method practiced on the pilot area's own problems
- 9Training recorded on a skills matrix for the pilot area
Model line implementation
Starts when the pilot area is chosen and its team trained
- 105S, standard work, visual management and a daily meeting running on the model line
- 11Results held for at least 3 months, so the gains are stable
- 12Practices written as standards every shift can use, and the team can teach them
Expansion and standardization
Starts when the model line passes its gate and leaders commit people to the next wave
- 13Each new area starts from the model line's written standards, not from scratch
- 14Supervisors in each new area can coach the daily routines themselves
- 15Waves planned for the remaining areas, a few months apart
Sustained improvement and strategy connection
Ongoing, with no end date: these show it is holding
- 16Daily improvement runs at every level without the program team pushing it
- 17Annual targets deployed to each area through hoshin kanri, with improvement work tied to them
- 18Leaders keep their gemba walks and standard work reviews when the next priority arrives
A filled-in example
Illustrative, not a benchmarkAn example: a pump plant's 24-month roadmap starting in January 2026, with small pump assembly as the model line, status on 30 September 2026 (illustrative numbers).
- Twenty milestones across six workstreams: the current-state map and the baseline in Q1, the steering group and leader standard work, lean basics and a skills matrix, then 5S, standard work, a daily team meeting, tiered meetings and a kanban loop on the model line, and the wave 2 and wave 3 areas in 2027.
- On 30 September 10 milestones are done (50%) and 11 were due (55%). The kanban loop was due on 18 September and is not done: late, 12 days. The baseline was done 7 days late and the skills matrix 14 days late.
- Two milestones are due within 30 days: daily kaizen on the model line (16 October) and gains held for 3 months with standards for every shift (30 October). Phases 1 to 3 are 100% done; the model line phase has 3 of 7 milestones done against 4 of 7 due.
- Metrics after Q3: lead time on the pilot stream is down from 18.0 to 13.5 days against a target of 9.0, so (18.0 − 13.5) ÷ (18.0 − 9.0) = 50% of the gap is closed. On-time delivery has closed 54% of its gap, first pass yield 67%, inventory 40%, ideas closed 56% and gemba walks 71%.
The steering group kept the model line gate review in December and held wave 2 until the kanban loop runs and the gains have held for three months. Coaching for the wave 2 supervisors stays planned for the first quarter of 2027.
Common mistakes
Treating it as a tool rollout
A plan that lists tools by month and ends on a date is a project, and its results fade when it ends. Plan the management system as well: daily meetings, leader standard work and how problems are raised.
Skipping the model line
Spreading effort across the whole plant at once leaves no area with stable results to copy. Prove it on one line and start the next areas from its written standards.
Leaders stepping back after the launch
When gemba walks and reviews stop, people read it as the program being over. Put the leaders' routines on the roadmap as milestones and check them at the steering group.
Metrics without a baseline
Without a baseline measured before the change, nobody can show what moved. Write it in phase 1 with its source and date, and keep the same definition every quarter.
Download the template
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
