Safety observation card template
A safety observation card is the form behind a behavior-based safety (BBS) program. An observer, often a supervisor or a peer, watches a task for a few minutes, marks each behavior safe or at risk, then talks with the person: recognizing what was done safely and agreeing how to fix what was not. The card carries no name of the person observed, because the point is to find patterns, not culprits. Page 1 of this template has four cards to cut out, with ten common behaviors across PPE, body position, lifting, tools, equipment, procedures, the work area and traffic, plus a blank row for your own. Page 2 is a tally sheet that adds up the cards by behavior, with % safe, follow-up actions and a week-by-week record.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.

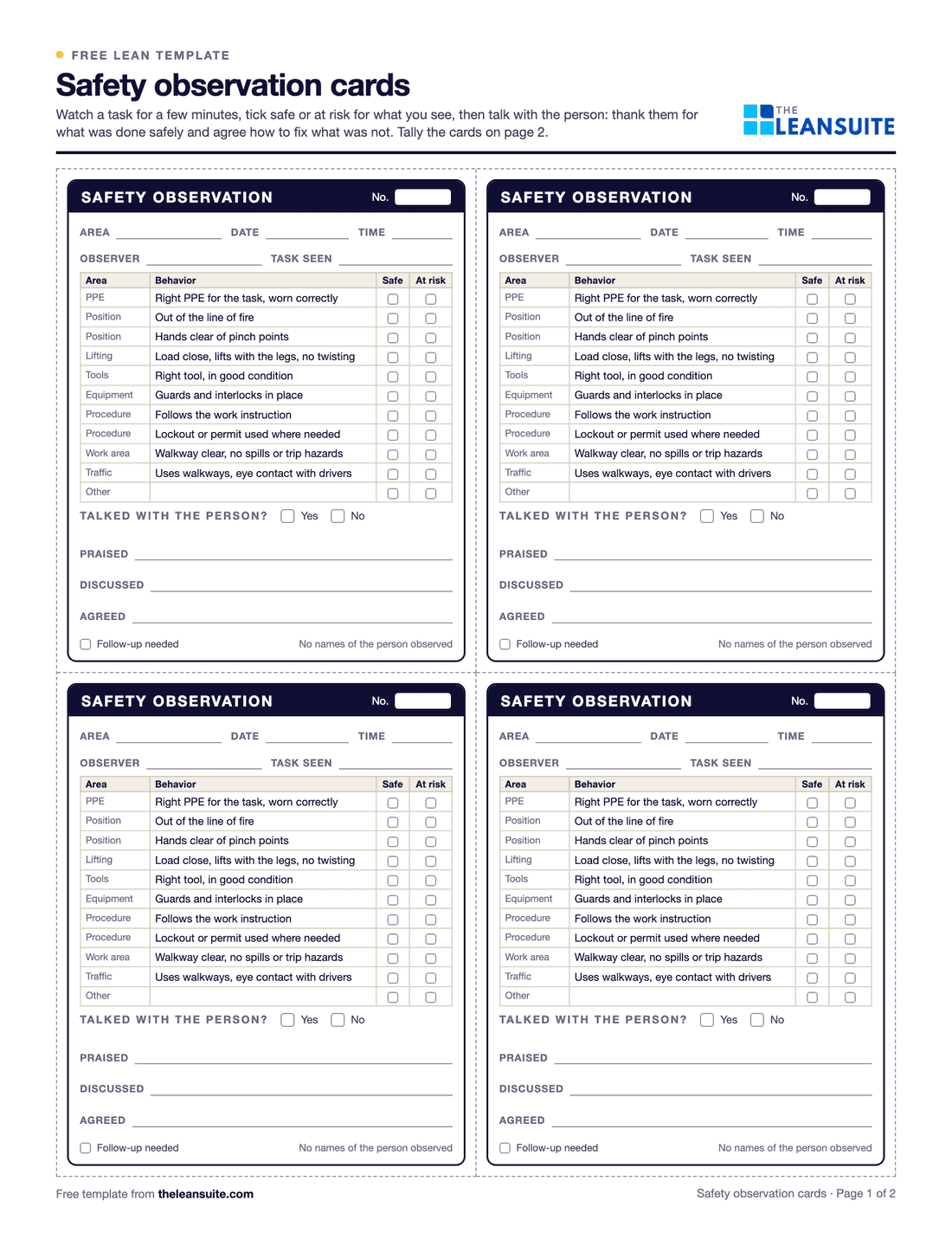

Four cut-out cards on one sheet, each with fields for area, date, time, observer and task, a checklist of ten behaviors with safe and at-risk boxes, whether the observer talked with the person, lines for praised, discussed and agreed, and a follow-up box.Four cards per sheetTen behaviors, safe or at riskConversation and feedbackFollow-up neededTally with % safeWeek-by-week record
When to use it
When to use safety observation cards
- To run a behavior-based safety program on paper, or to trial one in an area before going further.
- On a scheduled safety walk by supervisors, or peer to peer within a team.
- When incident or near miss reports point to the same behaviors, such as lifting or the line of fire.
- To recognize safe work, not only to correct at-risk work.
How to fill it in
- 1
Agree the behaviors
Use the ten on the card or replace them with the ones that matter in your area. Keep the list short enough to watch in a few minutes.
- 2
Tell people how it works
Explain that the cards carry no names and are not used for discipline, and that the observer will talk with them afterwards.
- 3
Observe for a few minutes
Watch a task, then tick safe or at risk for each behavior you saw. Leave the rest blank.
- 4
Have the conversation
Thank the person for what was done safely, ask about anything at risk and agree what to change. Note it on the card.
- 5
Tally the cards
Each week or month, add up safe and at risk for each behavior on page 2 and work out % safe.
- 6
Fix the causes
For the behavior seen most at risk, look for the cause in the job, such as a tool out of reach or a blocked walkway, and give the fix an owner and a date.
A filled-in example
Illustrative, not a benchmarkAn example: four weeks of observation cards in a stamping area, collected by supervisors and team leads.
The example four weeks of cards
Conversations held ÷ cards
- 58 ÷ 64= 91%
Lowest % safe: hands clear of pinch points71%
64 cards, a conversation held on 58 of them, 91 percent. The lowest behavior, hands clear of pinch points, was 71 percent safe.
- 64 cards, with a conversation held on 58 of them.
- Lowest % safe: hands clear of pinch points, at 71%, seen at risk mostly while clearing jams.
- Cause found in the job: the jam-clearing hook was kept at the next press, so operators reached in by hand.
- Follow-up: a hook on a marked holder at every press, and a one point lesson on clearing jams.
In the next four weeks the tally showed pinch-point behavior mostly safe, and the team moved on to the next lowest behavior, lifting at the coil station.
Common mistakes
Using cards for discipline
Once a card leads to a warning, people stop working normally when watched and stop talking. Keep names off and say so.
Ticking without talking
The conversation is where behavior changes. A card with no conversation is a count, not coaching.
Only looking for what is wrong
Recognizing safe behavior matters as much. Note what was done well.
Blaming the person for the job
At-risk behavior often comes from the job: a missing tool, a guard that slows the work, a target that rushes people. Fix those.
Collecting cards nobody reads
Tally them, act on the lowest behavior and tell the team what changed.
Download the template
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
Run this template in LeanSuite
In LeanSuite supervisors and peers log safe and at-risk behaviors on a phone by category, such as PPE, line of fire or ergonomics; an at-risk answer can raise a tag or an action, and dashboards show which departments need coaching.
See it in a 45-minute demoIn the lean glossary
Free tools
Guides
FAQ
Safety observation card template: common questions
A short form an observer uses to record the safe and at-risk behaviors seen during a task, and the conversation held afterwards. It is the main tool of a behavior-based safety program.
A program in which observers record safe and at-risk behaviors and use the results to coach people and fix the conditions behind unsafe habits, before they lead to injuries.
No. Cards without names keep the focus on patterns and causes, and people work more naturally and talk more openly when they know a card cannot be used against them.
Set a number each observer can keep up every week and track it on the tally sheet. A steady rhythm of observations with real conversations matters more than a high count.
Talk about them on the spot, then tally them. For the behaviors seen most often at risk, look for the cause in the job and fix it, and use short training where a skill is missing.
