People development pillar 90-day model area plan
A people development pillar model area plan is a 90-day plan for proving, in one area, that skill gaps can be found from real losses and closed with structured on-the-job training, before the routine spreads to other areas. The team builds the skills matrix, marks the critical tasks with too few trained people, traces errors and incidents to the skills behind them, trains experienced operators to teach with job instruction, writes job breakdown sheets for the critical tasks, trains and signs people off at the station, adds one point lessons for knowledge gaps and updates the matrix. This template has the 13-week plan as a Gantt chart in three phases with the owner, deliverable and done-when of each activity, a scoring table to choose the model area from loss data, the team, a KPI board, the day-90 gate, and the expansion plan for months 4 to 12 in three waves, with a worked example.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
When to use it
When to use a people development 90-day plan
- When one absence can stop a line because only one person knows a critical task.
- When errors, defects or incidents keep tracing back to people who were never properly trained.
- When a plant wants to prove a structured on-the-job training routine in one area before rolling it out.
- When leaders want a training plan they can review every week: who does what, by when, and what done looks like.
How to fill it in
- 1
Choose the model area from loss data
Score up to three candidate areas (five in Excel) on loss data, visibility, team willingness and repeatability, from 1 to 3. Loss data here means errors and stops caused by skill gaps, and critical tasks with only one trained person. Pick the highest total; on a tie, the higher loss data score wins.
- 2
Name the team and write day 1
Sponsor, pillar lead, the area supervisor, the experienced operators who will train, and the training coordinator.
- 3
Set the baseline and the day-90 targets
Critical tasks with two or more trained people, errors from skill gaps, training plan done, trainers able to teach and breakdown sheets written.
- 4
Run the 13 weeks and update the plan every week
Move a bar if your area needs it, write the week each activity really finished, and add one actual per KPI each week. Late activities turn red in the Excel version.
- 5
Pass the day-90 gate
The sponsor and pillar lead check the six gate items with evidence. If one is not met, fix it before any other area starts.
- 6
Plan the expansion waves
Wave 1 goes to areas with the same jobs or skills, with model area trainers training the new area's first trainers. Each new area runs its own 13 weeks against its own baseline.
The 90-day plan
Week by week: from the skills matrix to trained cover

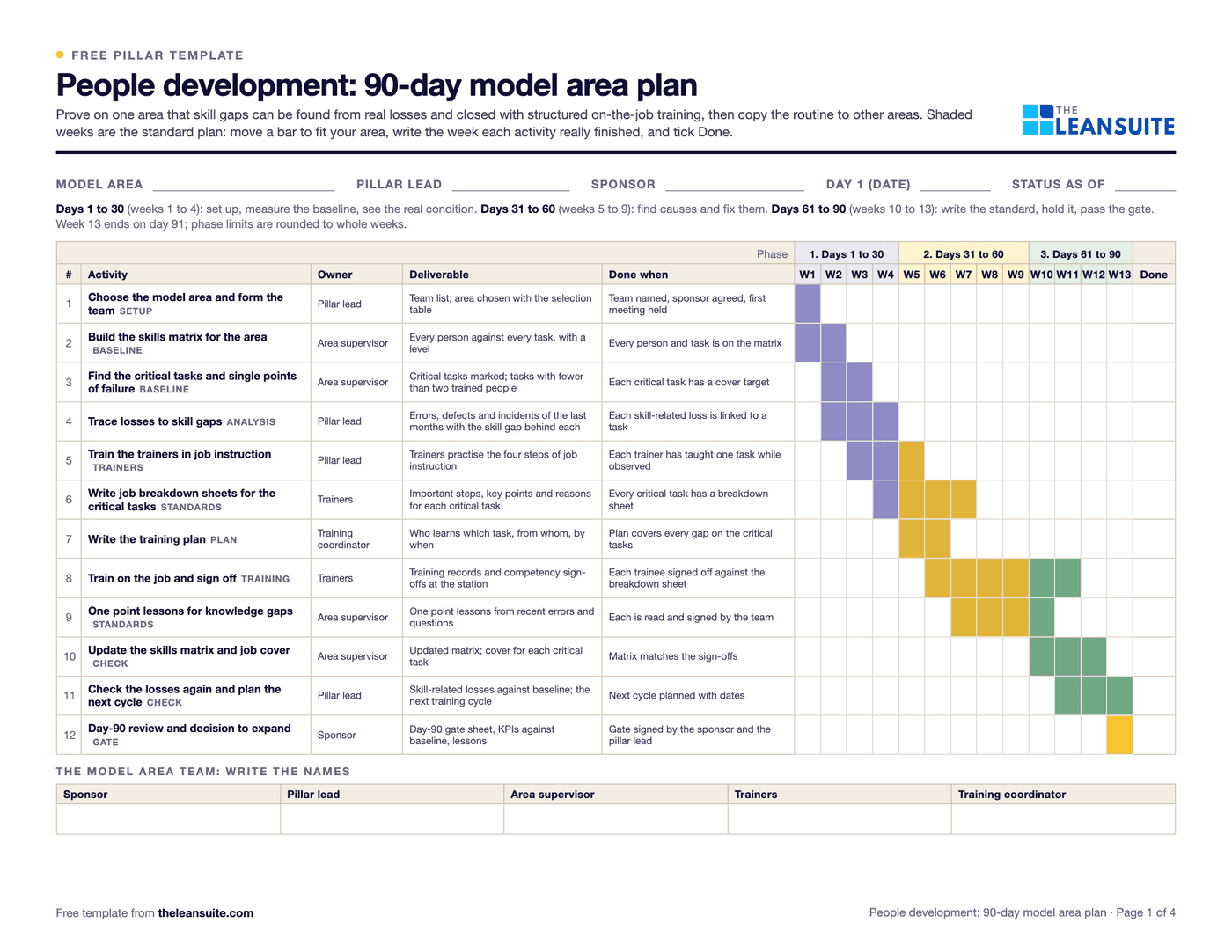

The standard plan printed on page 1 and in the Excel version. Days 1 to 30 are weeks 1 to 4, days 31 to 60 weeks 5 to 9 and days 61 to 90 weeks 10 to 13. Move the weeks to fit your area.
| Weeks | Activity | Owner | Deliverable | Done when |
|---|---|---|---|---|
| 1 | Choose the model area and form the team (Setup) | Pillar lead | Team list; area chosen with the selection table | Team named, sponsor agreed, first meeting held |
| 1 to 2 | Build the skills matrix for the area (Baseline) | Area supervisor | Every person against every task, with a level | Every person and task is on the matrix |
| 2 to 3 | Find the critical tasks and single points of failure (Baseline) | Area supervisor | Critical tasks marked; tasks with fewer than two trained people | Each critical task has a cover target |
| 2 to 4 | Trace losses to skill gaps (Analysis) | Pillar lead | Errors, defects and incidents of the last months with the skill gap behind each | Each skill-related loss is linked to a task |
| 3 to 5 | Train the trainers in job instruction (Trainers) | Pillar lead | Trainers practise the four steps of job instruction | Each trainer has taught one task while observed |
| 4 to 7 | Write job breakdown sheets for the critical tasks (Standards) | Trainers | Important steps, key points and reasons for each critical task | Every critical task has a breakdown sheet |
| 5 to 6 | Write the training plan (Plan) | Training coordinator | Who learns which task, from whom, by when | Plan covers every gap on the critical tasks |
| 6 to 11 | Train on the job and sign off (Training) | Trainers | Training records and competency sign-offs at the station | Each trainee signed off against the breakdown sheet |
| 7 to 10 | One point lessons for knowledge gaps (Standards) | Area supervisor | One point lessons from recent errors and questions | Each is read and signed by the team |
| 10 to 12 | Update the skills matrix and job cover (Check) | Area supervisor | Updated matrix; cover for each critical task | Matrix matches the sign-offs |
| 11 to 13 | Check the losses again and plan the next cycle (Check) | Pillar lead | Skill-related losses against baseline; the next training cycle | Next cycle planned with dates |
| 13 | Day-90 review and decision to expand (Gate) | Sponsor | Day-90 gate sheet, KPIs against baseline, lessons | Gate signed by the sponsor and the pillar lead |
1
- Activity
- Choose the model area and form the team (Setup)
- Owner
- Pillar lead
- Deliverable
- Team list; area chosen with the selection table
- Done when
- Team named, sponsor agreed, first meeting held
1 to 2
- Activity
- Build the skills matrix for the area (Baseline)
- Owner
- Area supervisor
- Deliverable
- Every person against every task, with a level
- Done when
- Every person and task is on the matrix
2 to 3
- Activity
- Find the critical tasks and single points of failure (Baseline)
- Owner
- Area supervisor
- Deliverable
- Critical tasks marked; tasks with fewer than two trained people
- Done when
- Each critical task has a cover target
2 to 4
- Activity
- Trace losses to skill gaps (Analysis)
- Owner
- Pillar lead
- Deliverable
- Errors, defects and incidents of the last months with the skill gap behind each
- Done when
- Each skill-related loss is linked to a task
3 to 5
- Activity
- Train the trainers in job instruction (Trainers)
- Owner
- Pillar lead
- Deliverable
- Trainers practise the four steps of job instruction
- Done when
- Each trainer has taught one task while observed
4 to 7
- Activity
- Write job breakdown sheets for the critical tasks (Standards)
- Owner
- Trainers
- Deliverable
- Important steps, key points and reasons for each critical task
- Done when
- Every critical task has a breakdown sheet
5 to 6
- Activity
- Write the training plan (Plan)
- Owner
- Training coordinator
- Deliverable
- Who learns which task, from whom, by when
- Done when
- Plan covers every gap on the critical tasks
6 to 11
- Activity
- Train on the job and sign off (Training)
- Owner
- Trainers
- Deliverable
- Training records and competency sign-offs at the station
- Done when
- Each trainee signed off against the breakdown sheet
7 to 10
- Activity
- One point lessons for knowledge gaps (Standards)
- Owner
- Area supervisor
- Deliverable
- One point lessons from recent errors and questions
- Done when
- Each is read and signed by the team
10 to 12
- Activity
- Update the skills matrix and job cover (Check)
- Owner
- Area supervisor
- Deliverable
- Updated matrix; cover for each critical task
- Done when
- Matrix matches the sign-offs
11 to 13
- Activity
- Check the losses again and plan the next cycle (Check)
- Owner
- Pillar lead
- Deliverable
- Skill-related losses against baseline; the next training cycle
- Done when
- Next cycle planned with dates
13
- Activity
- Day-90 review and decision to expand (Gate)
- Owner
- Sponsor
- Deliverable
- Day-90 gate sheet, KPIs against baseline, lessons
- Done when
- Gate signed by the sponsor and the pillar lead
What's on the gates
The day-90 gate and the wave gate for people development
The day-90 gate decides whether the model area is ready to be copied; the wave gate is checked for each new area before the next wave starts. Both are on page 3 of the PDF and on the Excel version's Day-90 gate and Expansion sheets.
Day-90 gate
All met before the first expansion wave starts
- 1The skills matrix is current and matches the sign-offs
- 2Every critical task has a job breakdown sheet
- 3The trainers have each taught a task while observed
- 4The training plan is on schedule and the next cycle has dates
- 5The KPI board has 13 weeks of data against the baseline
- 6The training routine and lessons are written up so another team can copy them
Wave gate
For each new area, before the next wave starts
- 7The area passed the same day-90 gate as the model area
- 8Its KPIs are measured against its own baseline, not the model area's
- 9The skills matrix format, breakdown sheets and training routine were copied and adapted, and the copy is recorded
- 10Coaches for the next wave are named and have run a session with the pillar lead watching
- 11The model area was audited again and still holds its standard
A filled-in example
Illustrative, not a benchmarkAn example: an electronics assembly plant (illustrative, with made-up numbers; the same as page 4 of the PDF and the Excel example sheets). Not a benchmark.
- Model area choice, loss data, visibility, team willingness and repeatability scored 1 to 3: SMT line scored 12, Final test scored 9 and Packing scored 7. The SMT line had the most defects from setup and programming errors, three critical tasks known by one person each, and the same machines run on a second line.
- Critical tasks with two or more trained people: baseline 40%, day-90 target 100%, week 13 actual 90%, 83% of the gap closed.
- Errors from skill gaps: baseline 14, day-90 target 4, week 13 actual 6, 80% of the gap closed.
- Training plan done: baseline 0%, day-90 target 100%, week 13 actual 92%, 92% of the gap closed.
- Trainers able to teach: baseline 0, day-90 target 4, week 13 actual 4, 100% of the gap closed.
- Breakdown sheets for critical tasks: baseline 10%, day-90 target 100%, week 13 actual 100%, 100% of the gap closed.
The team passed the day-90 gate in week 13. Wave 1 (months 4 to 6) went to SMT line 2, rework bench, wave 2 (months 7 to 9) to Final test, box build, and wave 3 (months 10 to 12) to Packing, stores, maintenance, with a model area team member coaching each wave 1 area.
Common mistakes
Training without a link to losses
Start from the errors and stops that skill gaps cause, so the training goes where it pays back and the result can be measured.
Experts who cannot teach
Knowing a job and teaching it are different skills. Train the trainers in job instruction before they train others.
Signing off on attendance
Sign a person off when they do the task to the breakdown sheet at the station, not when they sit through a session.
A skills matrix nobody updates
Update the matrix from the sign-offs, or it shows cover the area does not have.
Spreading before the gate
Copying the routine before the model area's critical tasks are covered spreads paperwork. Hold the gate, then expand in waves.
