Overhead crane inspection checklist: frequent and periodic

An overhead crane inspection checklist records the checks a bridge or gantry crane gets before use, every month and on a longer cycle, so no crane runs with a worn hook, a failed limit switch or a missed inspection. In the United States the rules are in OSHA 29 CFR 1910.179: frequent inspections at daily to monthly intervals, a complete periodic inspection every 1 to 12 months, signed monthly records for hooks, hoist chains and running ropes, and no use of a crane with an unsafe condition until it is corrected. This template has 34 checks, each tied to the paragraph it comes from and written in our own words: an operator's pre-shift card, the inspection record with a certification block, and a deficiency and out-of-service log. The Excel version keeps a crane register, reads the last signed records, works out the next frequent and periodic due dates (idle and standby cranes included) and gives each crane one status. It is not legal advice: follow the standard that applies to your crane and jurisdiction, the crane maker's manual and a qualified person.

Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.

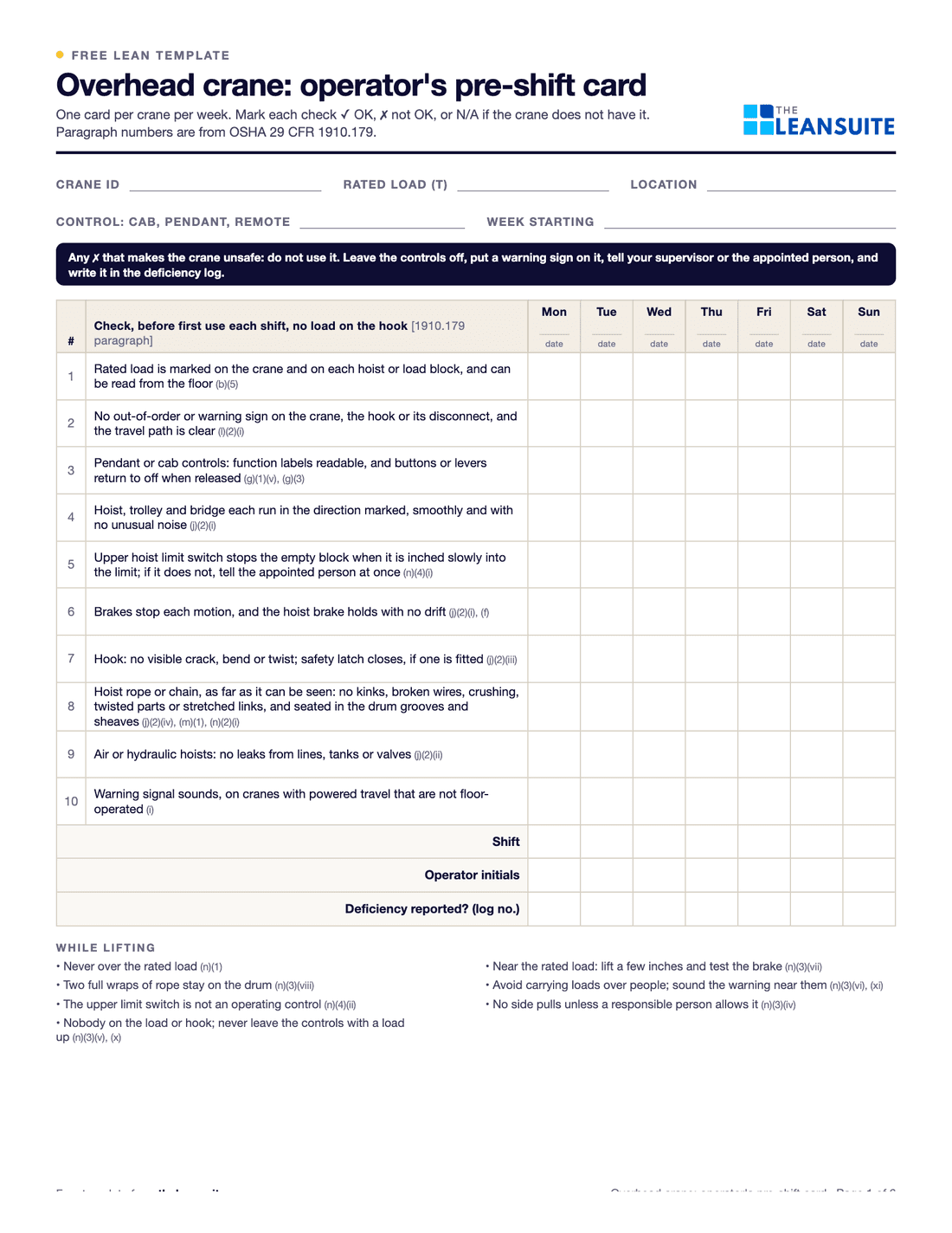

Page 1 of the overhead crane inspection checklistThe operator's pre-shift card with fields for crane ID, rated load and week, a do-not-use rule, ten checks with their OSHA paragraphs, a column for each day and the rules while lifting.
34 checks with 1910.179 paragraphsOperator pre-shift cardFrequent and periodic inspectionsHazard judgement on every failDeficiency and out-of-service logSigned monthly recordsCrane register with due datesIdle and standby cranesWorked example

When to use it

When to use an overhead crane inspection checklist

  • For every overhead, gantry, semigantry and wall crane in regular service, as the daily, monthly and periodic record.
  • Before a crane that has stood idle for a month or more is used again, and at least every 6 months for a standby crane.
  • Before first use of a new crane, or of one that has been altered or rerated.
  • Before an audit or an inspection visit, to show the signed monthly hook, chain and rope records and the date of each crane's last periodic inspection.

How to fill it in

  1. 1

    Put every crane on the register

    Crane ID, type, control, rated load, rope or chain hoist, service status and the periodic interval. Set the interval from 1 to 12 months by how hard and how often the crane works and where it runs, with the maker's manual and a qualified person.

  2. 2

    Give operators the pre-shift card

    Ten checks before first use each shift, including inching the empty block slowly into the upper limit switch. Anything that makes the crane unsafe: do not use it, put a sign on it and tell the appointed person.

  3. 3

    Do the frequent inspection at least monthly

    A designated person does groups 1 and 2, writes down the hook serial and the rope or chain ID, and signs. That signed, dated record is what 1910.179 asks for each month for hooks, hoist chains and running ropes.

  4. 4

    Do the periodic inspection on its interval

    All 34 checks, the frequent ones included. Where a defect cannot be seen from outside, the parts may need taking apart: OSHA's 2003 letter says a visual check is enough only when it would show the defect.

  5. 5

    Judge every fail, log it and tag out hazards

    Write each fail in the deficiency log with an owner and due date. A safety hazard means the crane is not used until it is corrected: switch locked open, signs on the crane and on the floor or hook, repair by designated people, and a name on the return to service.

  6. 6

    Enter each signed record

    The register takes the latest signed record for each crane and moves the next due dates. An unsigned record, or one without the hook and rope or chain IDs, does not count.

The inspections

Which inspection, how often and what record

From OSHA 29 CFR 1910.179, read on eCFR on 9 October 2026, in plain words. Read the standard for the exact wording.

  • Initial

    How often
    Before first use of a new or altered crane
    What it covers
    Inspection against the whole section; operational tests of hoisting, lowering, trolley and bridge travel, limit switches, locking and safety devices
    Record
    Keep it; rated load test reports on file (test load no more than 125% unless the maker says otherwise)
    Paragraph
    (j)(1)(i), (k)

  • Operator pre-shift

    How often
    Start of each operator's shift
    What it covers
    Upper limit switch tried with no load; the daily items on mechanisms, air or hydraulics, hooks and chains
    Record
    The pre-shift card (this template's practice)
    Paragraph
    (n)(4)(i), (j)(2)

  • Frequent

    How often
    Daily to monthly; some items daily
    What it covers
    Operating mechanisms, air and hydraulic systems, hooks, hoist chains, rope reeving and ropes
    Record
    Monthly, signed and dated, with the hook serial and the chain or rope ID
    Paragraph
    (j)(1)(ii)(a), (j)(2), (m)(1)

  • Periodic

    How often
    1 to 12 months, by activity, severity of service and environment
    What it covers
    A complete inspection: the frequent items plus structure, bolts, sheaves and drums, pins and bearings, brakes, indicators, power plant and electrical apparatus
    Record
    Not named in 1910.179; keep a signed one to show it was done
    Paragraph
    (j)(1)(ii)(b), (j)(3)

  • Idle 1 to 6 months

    How often
    Before it is used again
    What it covers
    The frequent inspection and a thorough rope inspection approved by an appointed person
    Record
    Rope record with date, signature and rope ID
    Paragraph
    (j)(4)(i), (m)(2)

  • Idle over 6 months

    How often
    Before it is used again
    What it covers
    The complete inspection and the rope inspection
    Record
    As above
    Paragraph
    (j)(4)(ii), (m)(2)

  • Standby

    How often
    At least every 6 months
    What it covers
    The frequent inspection and the rope inspection
    Record
    As above
    Paragraph
    (j)(4)(iii)

What's on the checklist

The 34 checks, grouped by who does them and how often

The operator does group 1 before first use each shift. A frequent inspection adds group 2; a periodic inspection covers all four. The paragraph in brackets is the part of OSHA 29 CFR 1910.179 each check comes from, written in our own words. On the sheet each check is Pass, Fail or N/A, and every fail is judged: is it a safety hazard?

Operator pre-shift check

Before first use each shift, no load on the hook

  1. 1Rated load is marked on the crane and on each hoist or load block, and can be read from the floor [(b)(5)]
  2. 2No out-of-order or warning sign on the crane, the hook or its disconnect, and the travel path is clear [(l)(2)(i)]
  3. 3Pendant or cab controls: function labels readable, and buttons or levers return to off when released [(g)(1)(v), (g)(3)]
  4. 4Hoist, trolley and bridge each run in the direction marked, smoothly and with no unusual noise [(j)(2)(i)]
  5. 5Upper hoist limit switch stops the empty block when it is inched slowly into the limit; if it does not, tell the appointed person at once [(n)(4)(i)]
  6. 6Brakes stop each motion, and the hoist brake holds with no drift [(j)(2)(i), (f)]
  7. 7Hook: no visible crack, bend or twist; safety latch closes, if one is fitted [(j)(2)(iii)]
  8. 8Hoist rope or chain, as far as it can be seen: no kinks, broken wires, crushing, twisted parts or stretched links, and seated in the drum grooves and sheaves [(j)(2)(iv), (m)(1), (n)(2)(i)]
  9. 9Air or hydraulic hoists: no leaks from lines, tanks or valves [(j)(2)(ii)]
  10. 10Warning signal sounds, on cranes with powered travel that are not floor-operated [(i)]

Frequent inspection

Daily to monthly by a designated person, with the checks above; hooks, chains and ropes need a signed monthly record

  1. 11Operating mechanisms adjusted so they work properly, with no excessive wear on their parts [(j)(2)(i), (j)(2)(vi)]
  2. 12Air and hydraulic systems: lines, tanks, valves and drain pumps not leaking or deteriorated [(j)(2)(ii)]
  3. 13Hooks: no cracks or deformation; throat opening no more than 15% over normal and twist under 10 degrees, or the maker's tighter limit; hook serial number recorded [(j)(2)(iii)]
  4. 14Hoist chain and end connections: no excessive wear, twist or distorted links, stretch within the maker's limit; chain ID recorded [(j)(2)(iv)]
  5. 15Rope reeving matches the crane maker's instructions [(j)(2)(vii)]
  6. 16Running ropes, full length: diameter not reduced below nominal, broken outside wires counted and located, outside wires not worn [(m)(1)(i) to (iii)]
  7. 17Rope ends and damage: no corroded or broken wires at end connections, end fittings sound and correctly applied, no severe kinking, crushing, cutting or unstranding; rope ID recorded [(m)(1)(iv) to (vi)]
  8. 18Each deficiency judged for whether it is a safety hazard; if it is, the crane is not used until it is corrected [(j)(2), (l)(3)(i)]

Periodic inspection

A complete inspection every 1 to 12 months, set by use, service and environment; includes every frequent check

  1. 19Structural members: none deformed, cracked or corroded [(j)(3)(i)]
  2. 20Bolts and rivets: none loose [(j)(3)(ii)]
  3. 21Sheaves and drums: none cracked or worn [(j)(3)(iii)]
  4. 22Pins, bearings, shafts, gears, rollers, and locking and clamping devices: none worn, cracked or distorted [(j)(3)(iv)]
  5. 23Brake linings, pawls, ratchets and other brake parts: no excessive wear [(j)(3)(v)]
  6. 24Load, wind and other indicators read correctly over their full range [(j)(3)(vi)]
  7. 25Power plant (electric, gasoline, diesel or other) performs properly and meets its safety requirements [(j)(3)(vii)]
  8. 26Chain drive sprockets not excessively worn, and drive chain not stretched [(j)(3)(viii)]
  9. 27Electrical apparatus: no pitting or deterioration of controller contactors, limit switches and pushbutton stations [(j)(3)(x)]

Other conditions the standard sets

From other paragraphs of 1910.179, checked at the periodic inspection

  1. 28Trolley stops, and bridge and trolley bumpers, in place and secure [(e)(1) to (e)(3)]
  2. 29Rail sweeps on the bridge trucks reach below the top of the rail in front of the wheels [(e)(4)]
  3. 30Guards on gears, chains, sprockets and other exposed moving parts secure; rope guards where ropes could foul or chafe [(e)(5), (e)(6)]
  4. 31Sheave guards in place on the bottom block and where ropes can go slack [(h)(1)(ii), (h)(1)(iii)]
  5. 32At least two wraps of rope left on the drum with the hook at its lowest point, and the rope end anchored by a clamp or approved socket [(h)(2)(iii)]
  6. 33Runway conductor disconnect can be locked open, the crane's own disconnect works, and the hoist has an upper overtravel limit switch [(g)(5)]
  7. 34Ladders, footwalks and cab: access clear, handrails and toeboards in place, no loose tools or articles in the cab [(c), (d), (o)(2)]

A filled-in example

Illustrative, not a benchmark

An example: a made-up plant with 7 overhead and gantry cranes, as of 9 October 2026, and the periodic inspection of its 10-ton bridge crane BC-3 (illustrative).

  • BC-3, periodic inspection: all 34 checks in scope, 26 pass, 2 fail and 6 N/A (no air or hydraulics, floor-operated so no warning signal needed, a wire rope hoist, no load indicator, no chain drive).
  • Neither fail is a safety hazard: worn trolley labels on the pendant, due in 7 days, and pitting on the hoist-up contactor, due in 14. A note on the rope: 2 broken outside wires in one lay, within the rope maker's limit, to be rechecked at the next monthly.
  • BC-2 is tagged out: its monthly inspection found the main hook's throat opening beyond the hook maker's limit. The hook is replaced, not welded or bent back.
  • GC-1, the yard gantry crane on a 3-month interval, is overdue: its last monthly record was never signed, so the last signed check of the frequent items is its periodic inspection of 30 August. Its bent rail sweep is also past its due date.
  • BC-1 and BC-4 have periodic inspections due within 30 days. SG-1 has been idle for 75 days and needs a frequent inspection and a rope check before it is used.

One status per crane: 1 out of service, 1 inspection overdue, 1 inspect before use, 2 due soon, 1 with deficiencies open and 1 OK. 4 deficiencies are open, 1 of them overdue, and 1 record does not count until it is signed.

Common mistakes

  • Monthly records with no signature or no IDs

    The standard's monthly record for hooks, chains and ropes needs the date, the inspector's signature and the hook serial or chain or rope ID. A record missing any of them is not the record the standard describes, and the register does not count it, as with GC-1 in the example.

  • One interval for every crane

    The periodic interval depends on activity, severity of service and environment. A yard crane in the weather or a crane used on every shift may need a much shorter interval than a tool room crane used twice a week.

  • Stopping the hook on the upper limit switch

    The upper limit switch is a safety device, never an operating control (1910.179(n)(4)(ii)). Operators try it once at the start of the shift, inching the empty block into it slowly.

  • Repairing a cracked or opened-up hook

    A hook with a crack, a throat opening more than 15% over normal or a twist over 10 degrees is discarded. Welding or reshaping is not generally recommended, and if it is tried the hook must be load tested first. The hook maker's limits may be tighter.

  • Logging a fail without judging it

    Every deficiency gets a decision: is it a safety hazard? If yes, the crane is not used until it is corrected. If no, it still needs an owner and a due date, or it stays on the crane for years.
