Approved supplier list template
An approved supplier list, or ASL, is the register of suppliers an organisation has judged fit to buy from, with the evidence behind each approval. For each supplier it records what is bought, how the supplier was approved (an audit, a certificate, a delivery history or an approved sample), its current status and when it was last evaluated. This template adds the dates that make the list work: the expiry of the supplier's certificate, flagged when it is near or past, and the next re-evaluation, worked out from the last one. The Excel version colours lapsed and expiring certificates and overdue re-evaluations, keeps a change log with the reason for every change, and counts suppliers by status, basis and commodity. The PDF has the same list and log to print, a page on approval criteria and a worked example. It is general quality-system practice; where a customer or a standard sets rules for approving suppliers, follow them.
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.

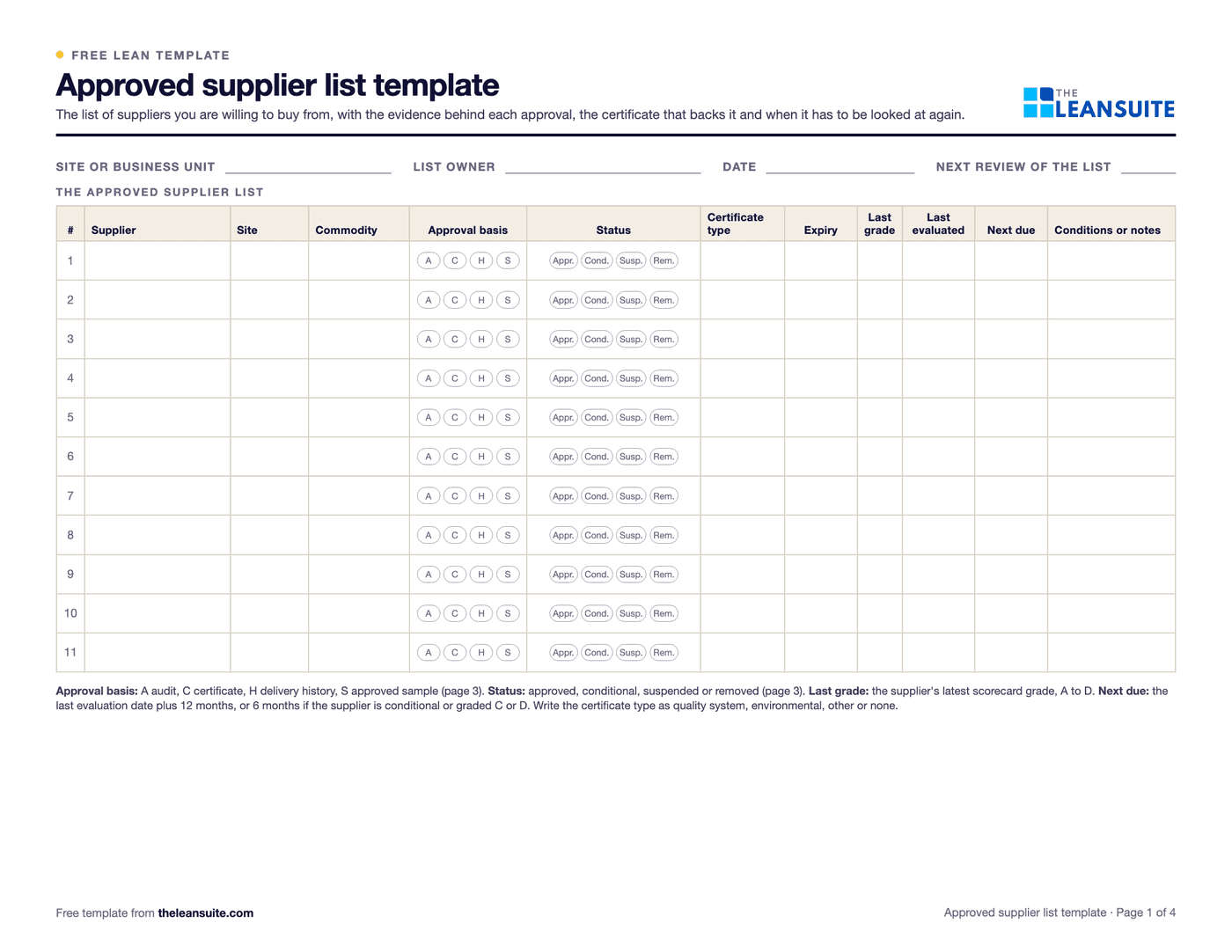

Header fields above a table with columns for supplier, site, commodity, approval basis, status, certificate type and expiry, last grade, last evaluated, next due and notes.Supplier listApproval basis and statusCertificate expiry alertsRe-evaluation datesChange logSummary by status and commodityApproval criteriaWorked example
When to use it
When to use an approved supplier list
- When purchasing and quality keep their own idea of who is approved and the lists do not match.
- When a customer or an auditor asks how you approve and monitor suppliers and you need to show the evidence.
- When supplier certificates expire unnoticed and a supplier is found to have been uncertified for months.
- When you need to decide who is due for re-evaluation and who is conditional pending a corrective action.
- Not as a supplier scorecard: the list records the approval and its evidence, while a scorecard grades performance.
How to fill it in
- 1
Set the approval criteria
Decide what a supplier must show to go on the list for each kind of product: an audit, a certificate, a delivery history or an approved sample. Write it on the criteria page.
- 2
Enter each supplier with its basis and status
Supplier, site, commodity, the basis it was approved on and its status: approved, conditional, suspended or removed. Keep the evidence and note where it is.
- 3
Record the certificate and its expiry date
Pick the certificate type, or none, and enter its expiry date. The sheet shows the days to expiry and flags a certificate that has lapsed or will expire within the warning window.
- 4
Enter the last scorecard grade and evaluation date
Add the supplier's latest grade, A to D, and the date it was last evaluated. The next re-evaluation is worked out from that date, at half the normal interval for a conditional supplier or a grade C or D.
- 5
Log every change
When you add a supplier, change a status, renew or lose a certificate, or update details, add a line to the change log with the reason and who approved it.
- 6
Review the flags each month
Ask for new certificates ahead of expiry, schedule the overdue re-evaluations, and chase the corrective actions behind the conditional suppliers. Check that only approved and conditional suppliers receive orders.

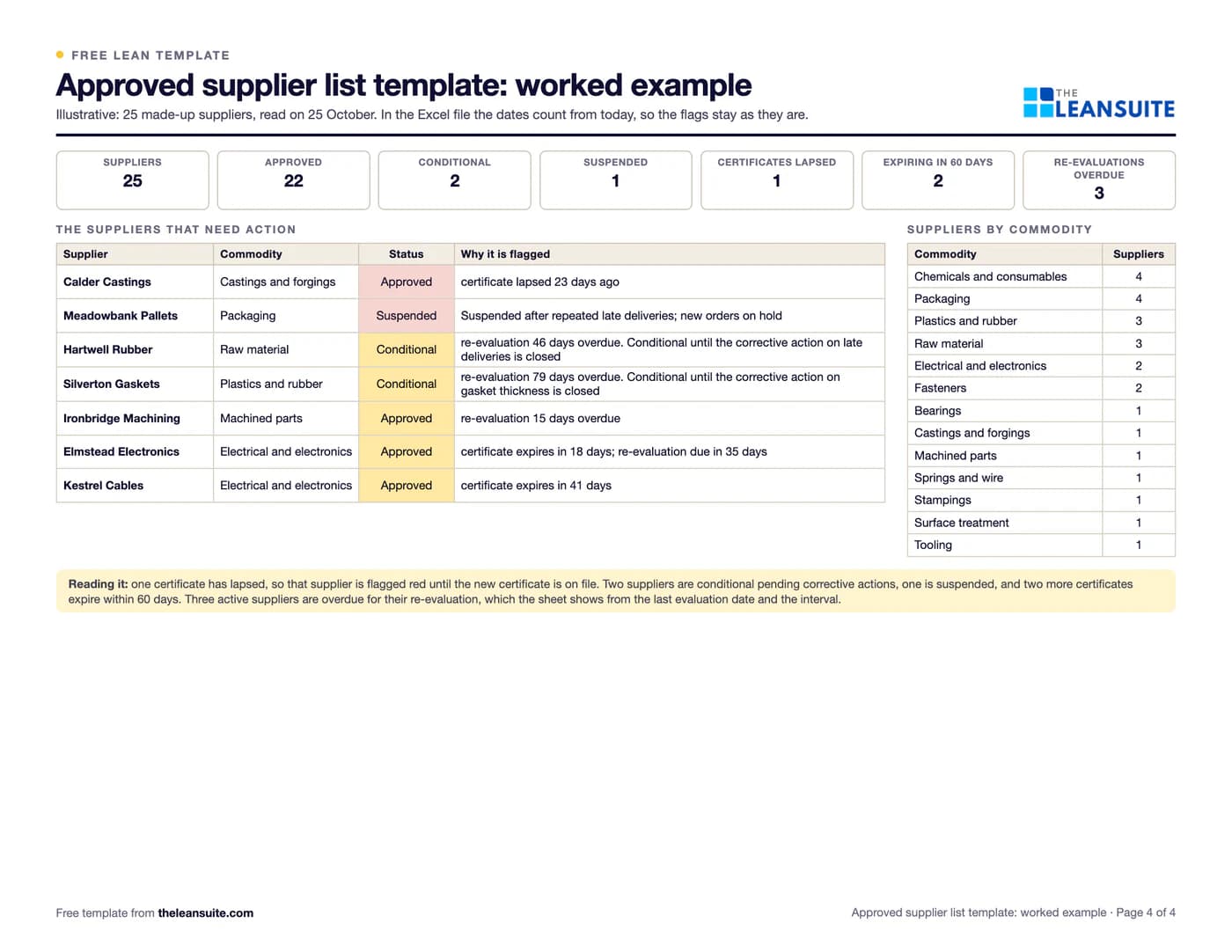

A filled-in example
Illustrative, not a benchmarkAn example (illustrative): a list of 25 made-up suppliers, read on one day.
- Twenty-two suppliers are approved, two are conditional pending corrective actions, one on late deliveries and one on out-of-tolerance gaskets, and one is suspended.
- One supplier's certificate has lapsed, so it is flagged red until the new certificate is on file. Two more certificates expire within 60 days.
- Three active suppliers are overdue for their re-evaluation, and one more is due within 60 days. The two conditional suppliers are on the shorter, six-month interval.
- The change log shows when each status changed and why, for example a status change after four late deliveries in six months.
The seven flagged suppliers are the month's work for purchasing and supplier quality, and the other 18 need nothing.
Common mistakes
Approving once and never looking again
A supplier approved five years ago may have changed owner, site or process. Re-evaluate at a set interval, shorter when there are problems.
Keeping a certificate with no expiry date
A certificate on file proves nothing once it has lapsed. Record the expiry date and ask for the renewal before it passes.
Ordering from suppliers that are not approved
A list only works if orders follow it. Make status visible to buyers so a suspended supplier cannot receive a new order by accident.
Changing the list without a reason
A status change with no note leaves no trail. Record the date, the reason and who approved, so the list can be explained to an auditor.
Treating the list as a scorecard
The list records approval and its evidence. Performance over time belongs on a scorecard, whose latest grade can be noted here.
Download the template
Free to use: print it, copy it and edit it for your team. Enter your name and work email once to download.
Run this template in LeanSuite
In LeanSuite, when an inspector flags a defect the batch is quarantined and a SCAR with photos goes to Quality and Procurement, and the SCAR's lifecycle, including the days the supplier took to respond, feeds the supplier's scorecard.
See it in a 45-minute demoIn the lean glossary
Free tools
FAQ
Approved supplier list template: common questions
An approved supplier list (ASL) is a register of the suppliers an organisation has approved to buy from, with the basis for each approval, its status and the dates it was evaluated. It is also called an approved vendor list.
The supplier and its site, what you buy from it, how it was approved, its status, the certificate it holds and the expiry date, its latest performance grade, the last evaluation and the next one due, and notes on any conditions. This template has a column for each.
A conditional supplier may still receive orders while named conditions are met by a date, for example a corrective action or a renewed certificate. If the conditions are not met, the supplier moves to suspended.
There is no fixed interval. A common approach is once a year, and more often for conditional suppliers or those with a poor grade. This template uses a normal interval you set and half of it for conditional or poorly graded suppliers.
Record each certificate's expiry date on the list. This template shows the days to expiry and flags a certificate that has lapsed or is within the warning window you set, so you can ask for the renewal in time.
